Engine Oil Vacuum Draining And Filling (G1997675): Draining

WARNING: This page is about a different variant/trim than selected.

WARNING:

The spilling of hot oil is unavoidable during this procedure, care must be taken to prevent scalding.
Be prepared to collect escaping oil.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Engine oil vacuum draining and filling is the recommended procedure for engine oil change during a scheduled service. Scheduled service labour times are calculated using this method.

CAUTION: Make sure the engine is warm.
- Start and run the engine at idle until the normal operating temperature is reached.
- Stop the engine.
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

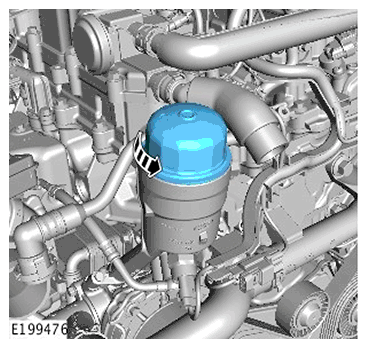

Loosen the oil filter element cap 4 complete turns.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

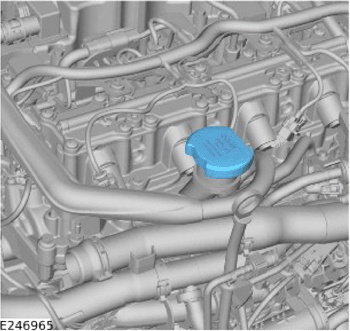

Remove the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil level gauge.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1644
- Use the special tool to drain the oil.
Remove the special tool.
Special Tool(s): JLR-303-1644
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil filter element cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the oil filter element.
- Remove and discard the O-ring seal.
