Oil Pan
WARNING: This page is about a different variant/trim than selected.

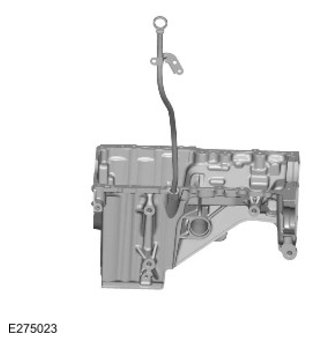

The oil pan is cast from aluminum alloy using a HP die cast process and is located on the underside of the cylinder block. The oil pan is sealed to the cylinder block with RTV sealant. The oil pan is secured with 17 bolts and 2 shoulder bolts that locate the oil pan to the cylinder block. The oil pan contains the windage tray and the oil level gauge tube. The oil is drained by removal of the oil pan drain plug and washer, located on the side of the oil pan. Use new oil pan drain plug and washer after they are removed.
