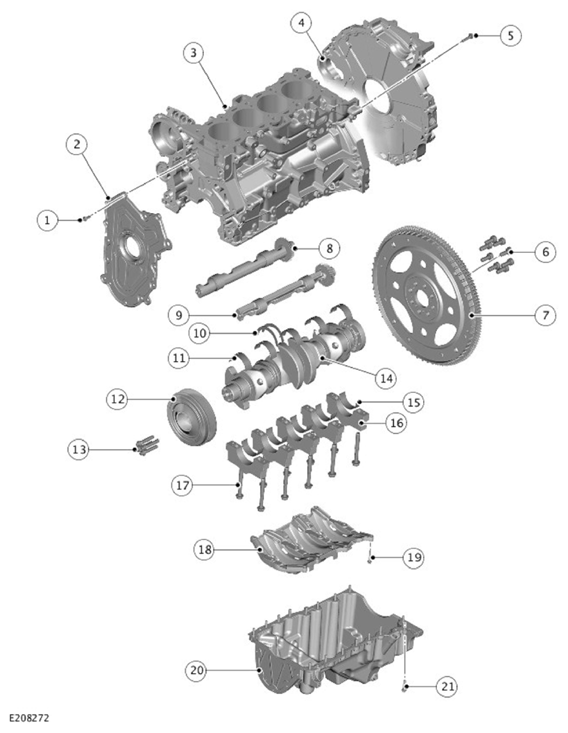

Cylinder Block Components
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt - Cylinder block front cover (quantity 14) |
| 2 | Cylinder block front cover |
| 3 | Cylinder block |
| 4 | Cylinder block rear cover and oil seal |
| 5 | Bolt - Cylinder block rear cover and oil seal (quantity 16) |
| 6 | Bolt - Drive plate (quantity 8) |
| 7 | Drive plate |
| 8 | Right dynamic balancer |
| 9 | Left dynamic balancer |
| 10 | Thrust washer (quantity 2) |
| 11 | Upper main bearing (quantity 5) |
| 12 | Crankshaft pulley/torsional vibration damper |
| 13 | Bolt - Crankshaft pulley/torsional vibration damper (quantity 4) |
| 14 | Crankshaft |
| 15 | Lower main bearing (quantity 5) |
| 16 | Main bearing cap (quantity 5) |
| 17 | Bolts - Main bearing cap (quantity 10) |
| 18 | Windage tray |
| 19 | Bolt - Windage tray (quantity 12) |
| 20 | Oil pan |
| 21 | Bolt - Oil pan (quantity 19) |
