Fuel Supply Line (G1900185): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Before working on the fuel system make sure to study the fuel system health and safety service information.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the front left fender splash shield.
Refer to: FRONT WHEEL ARCH LINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

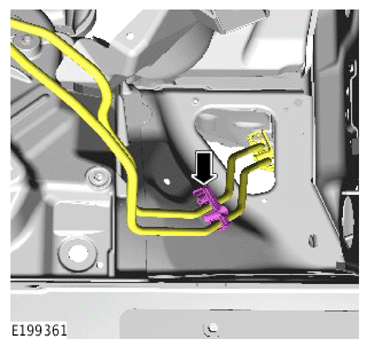

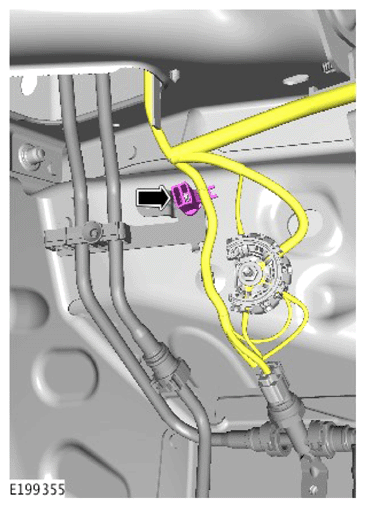

Release the wiring harness clip from the lower fuel supply line mounting bracket.
WARNING: Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

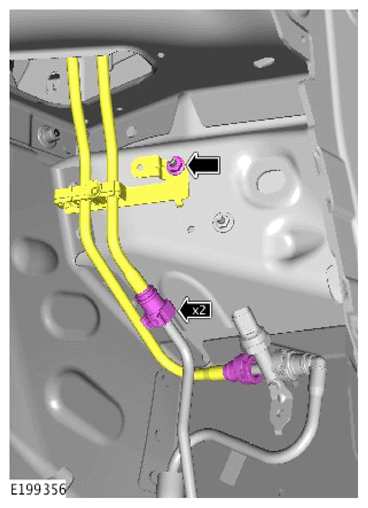

Remove the lower fuel supply line mounting bracket nut and disconnect the 2 fuel supply line connectors from the underbody fuel lines.
Lower the vehicle on the lift to an appropriate working height.
Remove the windshield wiper pivot arms.
Refer to: WINDSHIELD WIPER PIVOT ARM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

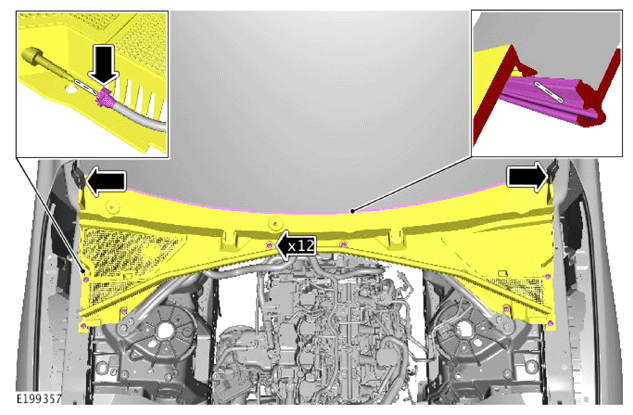

Release the cowl vent screen.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

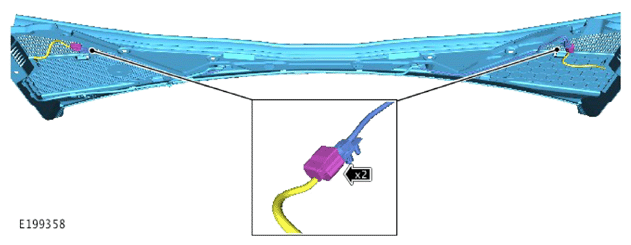

Disconnect the 2 electrical connectors and remove the cowl vent screen.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

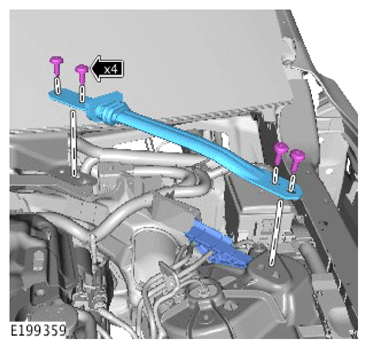

Remove the body brace and fuel supply line rubber mounting.

The following step(s) applies to:

Right-hand drive vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

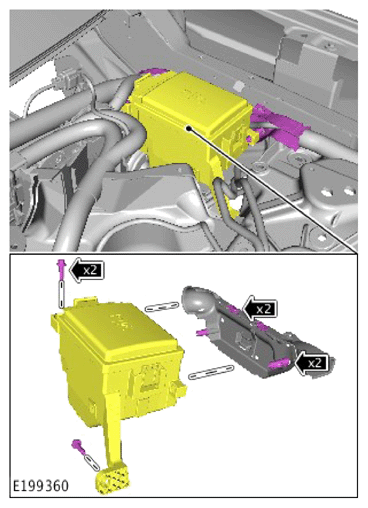

Release and reposition the fuse box.

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the fuel supply line to body clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

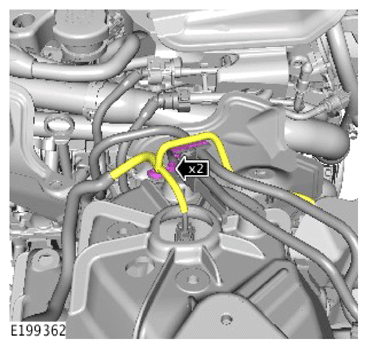

Release the 2 wiring harness clips from the upper fuel supply line mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

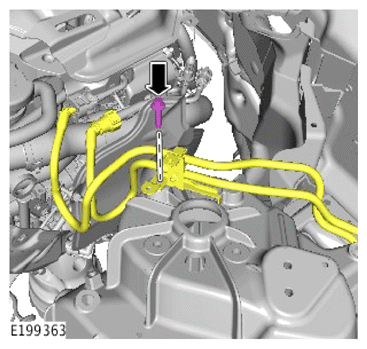

Remove the upper fuel supply line mounting bracket to body bolt.
WARNING: Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

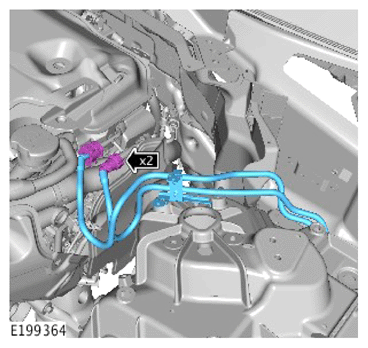

Disconnect the 2 fuel supply line connectors from the engine and remove the fuel supply line from the vehicle.
