Fuel Pump Driver Module (G2173329): Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: Make sure that the seal is correctly positioned. Failure to follow this instruction may result in damage to the vehicle.

    Install a new O-ring seal to the fuel pump and sender unit.

    Renew Part: Fuel pump O-ring seal Quantity: 1 .

    • Install the fuel pump and sender unit into the fuel tank.
    • Install the in tank fuel pipe onto the fuel pump and sender unit.
  3. Connect the lower electrical connector for the fuel pump and sender unit.
  4. Using the special tool install the fuel pump and sender unit locking ring.

    Special Tool(s): 310-123

  5. Install the 2 fuel pump and sender unit fuel pipes.
  6. Connect the 2 fuel pump and sender unit electrical connectors.
  7. Install the fuel tank cover.

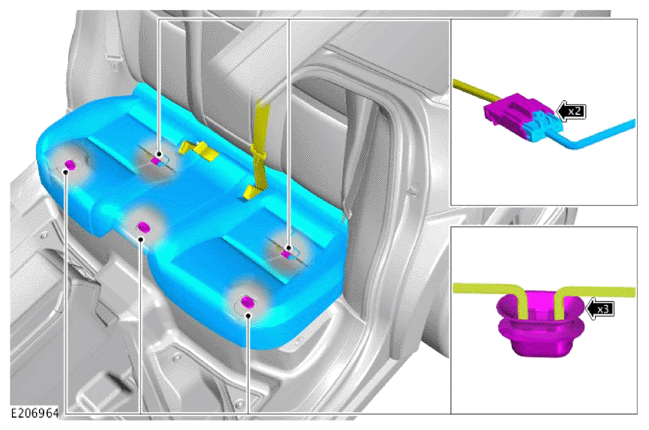

  8. G14514500Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the rear seat cushion.

  9. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  10. Refill the fuel tank.
