Fuel Filler Pipe And Breather Assembly - Non-Plug-In Hybrid Electric Vehicles Only

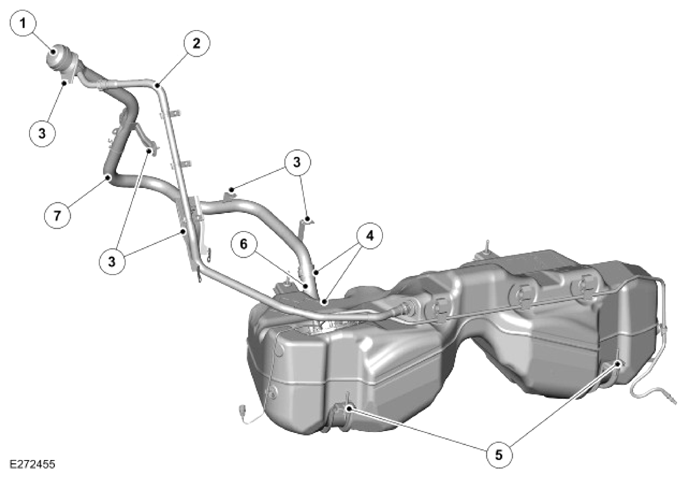

Fuel Filler Pipe and Breather Assembly - All Markets, Except North American Specification and China Market Vehicles
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel filler cap |
| 2 | Fuel tank breather pipe |
| 3 | Mounting bracket (quantity 5) |
| 4 | Hose clamp (quantity 2) |
| 5 | Fuel tank support strap (quantity 2) |
| 6 | Fuel filler hose |
| 7 | Fuel filler pipe |

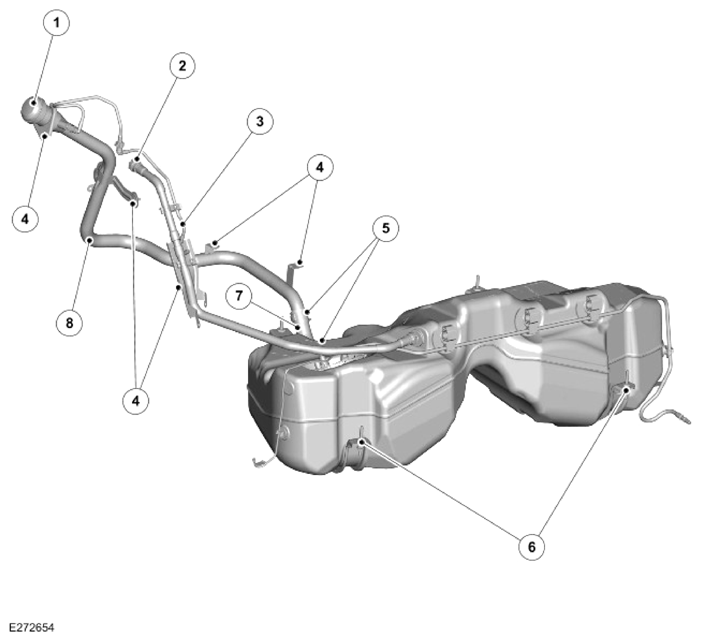

Fuel Filler Pipe and Breather Assembly - North American Specification and China Market Vehicles Only
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel filler cap |
| 2 | Fuel tank breather pipe - To fuel vapor separator |
| 3 | Fuel tank breather pipe - To fuel filler pipe |
| 4 | Mounting bracket (quantity 5) |
| 5 | Hose clamp (quantity 2) |
| 6 | Fuel tank support strap (quantity 2) |
| 7 | Fuel filler hose |
| 8 | Fuel filler pipe |
The neck of the fuel filler pipe is positioned at the rear of the vehicle, above the rear right wheel. The filler pipe and cap is covered by a molded plastic fuel flap which is electrically locked when the vehicle is locked.
The fuel filler cap is a conventional threaded type which is secured to the vehicle with a lanyard. The fuel filler cap must be securely installed to make sure the fuel tank venting system is sealed and potential fuel loss prevented. The fuel filler cap has a ratchet locking mechanism, it should be screwed in to a torque of 3 audible clicks. The clicks confirm the fuel filler cap is correctly tightened.
The fuel filler pipe is a stainless steel fabrication which is secured to the vehicle body with 3 brackets and nuts. A metal stub pipe, attached to the fuel filler neck, provides for the attachment of the breather pipe.
The fuel filler pipe attaches to a stub at the rear of the fuel tank which incorporates a check valve. The in-line check valve is mounted inside the fuel tank inlet stub, and is retained in the closed position by a spring. The check valve is only opened when the vehicle is refueled.
A breather is connected between the fuel filler neck and the fuel tank. The breather enables the fuel tank to be filled, allows for expansion of the fuel vapor and controls the fuel cut off during filling. The fuel vapor is routed to the evaporative emission canister.
For additional information, refer to: EVAPORATIVE EMISSIONS
