Exhaust System - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV (G2863366): Specifications

Torque specification

NOTE: Numbers with a green background are a single use component.

Component torque location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

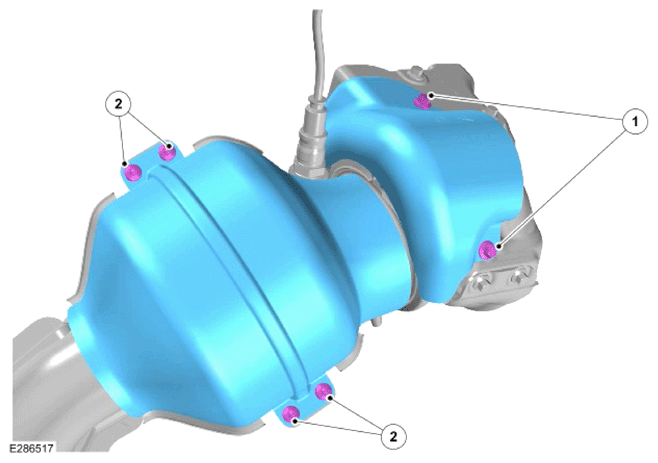

1	Turbocharger heatshield bolts	8	-	71
2	Catalytic converter heatshield bolts	8	-	71

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

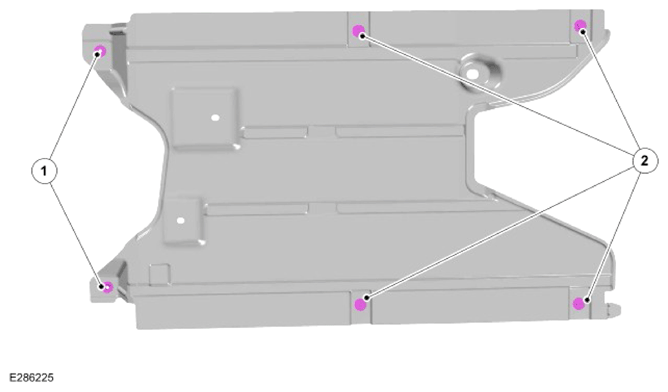

1	Center undershield nuts	5	-	44
2	Center undershield bolts	5	-	44

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

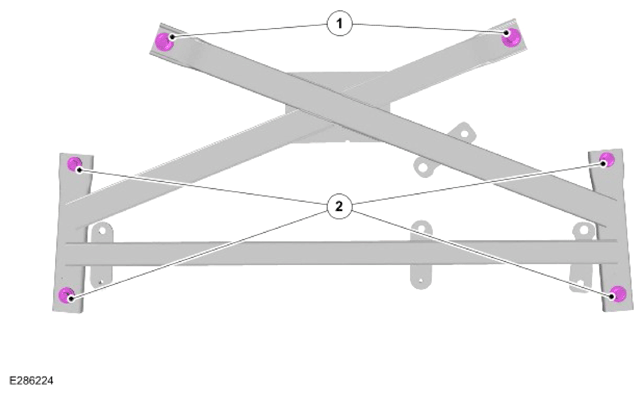

1	Front exhaust clamp	56	41	-
2	Exhaust crossbrace bolts	25	18	-
3	Rear exhaust clamp	55	41	-

Component Torque Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

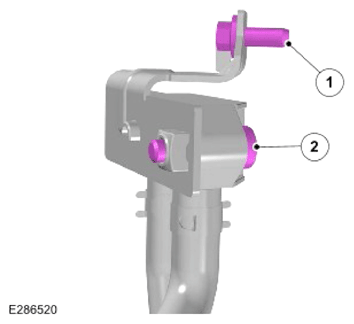

1	Support brace M10 bolts	60	44	-
2	Support brace M12 bolts	80	59	-

Component Torque Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

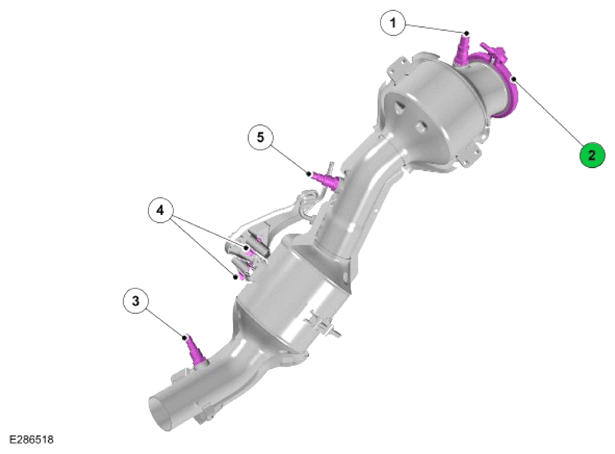

1	Pre Heated Oxygen Sensor (HO2S)	48	35	-
2	Catalytic converter to turbocharger clamp	10	7	-
3	Post catalyst HO2S	48	35	-
4	Gasoline Particulate Filter (GPF) bracket bolts	25	18	-
5	Mid catalyst HO2S	48	35	-

Component Torque Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

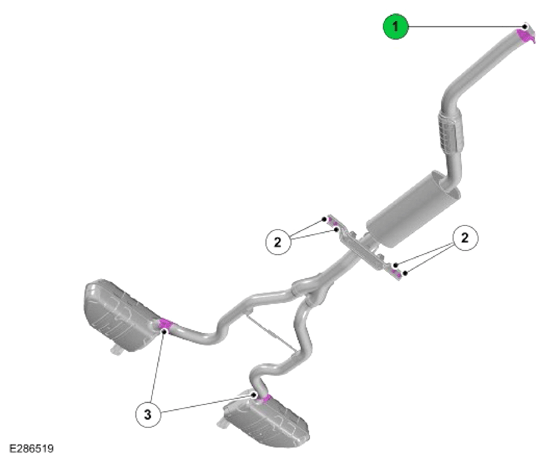

1	GPF  differential pressure sensor bracket bolt	9	-	80
2	GPF  differential pressure sensor bolt	7	-	62
