Rear Silencer (G2524049): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING .

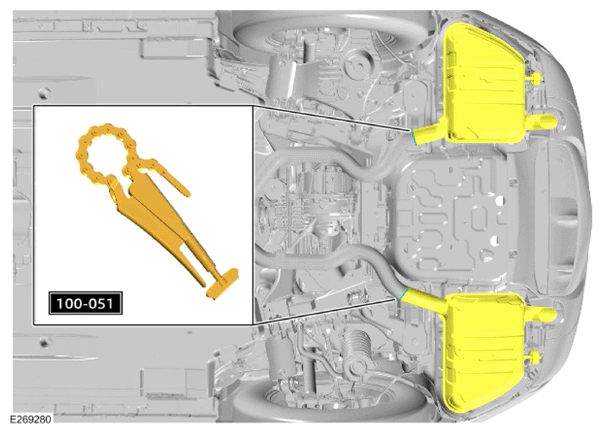

Use the special tool to cut the exhaust pipes as illustrated.
Special Tool(s): 100-051

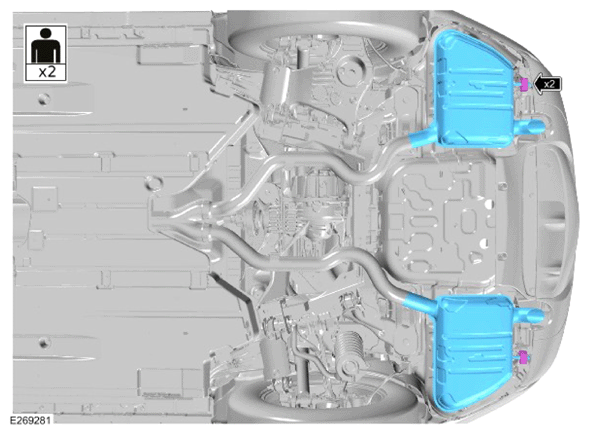

- Release the 2 exhaust mounting rubbers.
- Remove the 2 rear silencers.
