Front Silencer (G2524048): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

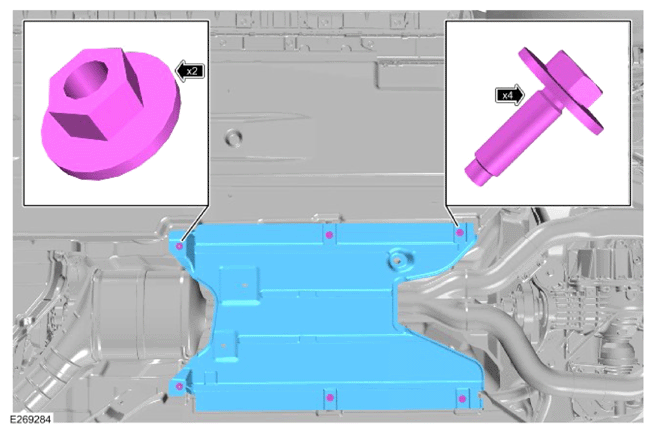

- Remove the 2 nuts.
- Remove the 4 bolts.
- Remove the center undershield.
Remove the rear silencer.
Refer to: REAR SILENCER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

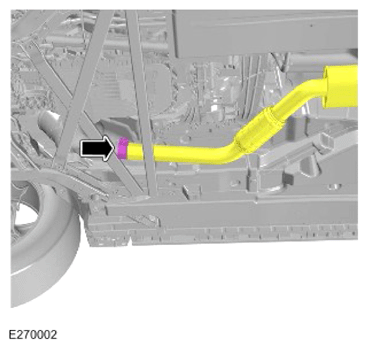

Remove and discard the front exhaust clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

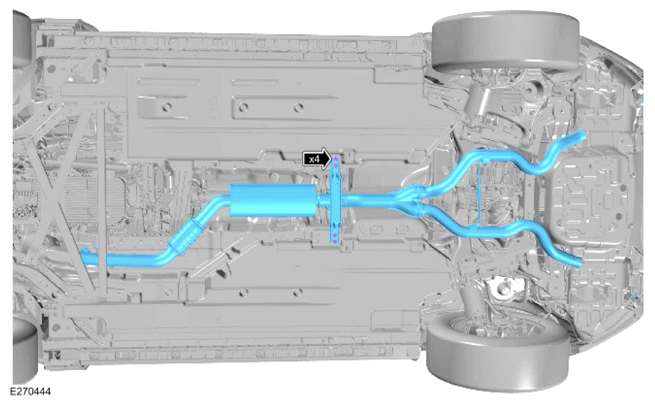

- Remove the 4 bolts from the exhaust hanger bracket.
- Remove the front silencer.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

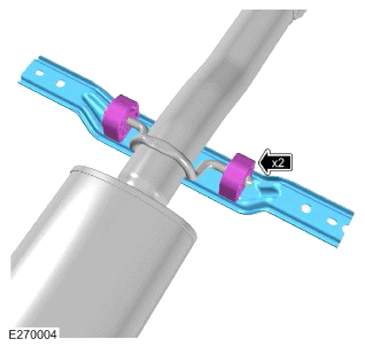

- Release the 2 exhaust mounting rubbers.
- Remove the exhaust hanger bracket from the front silencer.
