Exhaust System - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV (G2524047): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the exhaust clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Remove the 4 bolts.
- Remove the center undershield.
CAUTION: Make sure the exhaust system is supported at all times.

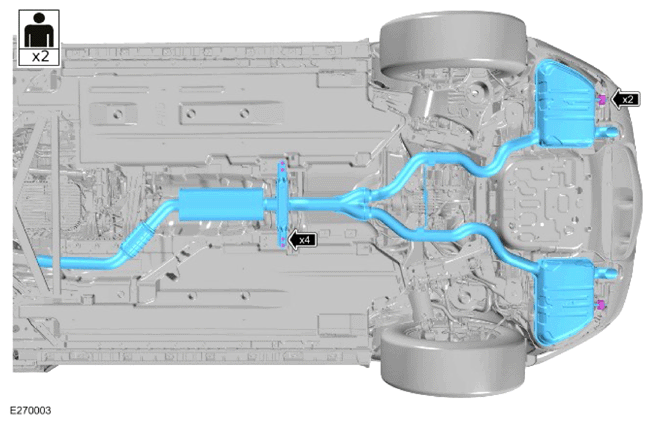

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Release the 2 exhaust mounting rubbers.
- With assistance from another technician, remove the exhaust system.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 exhaust mounting rubbers.
- Remove the exhaust cross brace.
