Rear Section
WARNING: This page is about a different variant/trim than selected.

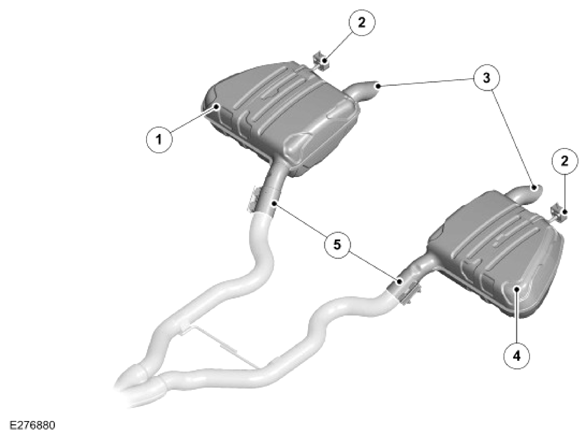

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear right silencer |
| 2 | Mounting rubber (quantity 2) |
| 3 | Outlet pipe (quantity 2) |
| 4 | Rear left silencer |
| 4 | Inlet pipe (quantity 2) |
The rear section is divided into left side and right side rear silencer and the exhaust gases are expelled from each rear silencer trough a single outlet pipe. Each side of the rear section is supported by a mounting rubber. The 2 hanger brackets are bolted to the vehicle body.
In production, the center section and the rear section are installed as one component. In service, the 2 rear silencers can be replace independently and secure with a additional service clamp.
