Mid Catalyst Heated Oxygen Sensor (G2278881): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the catalytic converter.
Refer to Catalytic Converter EXHAUST SYSTEM - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV .

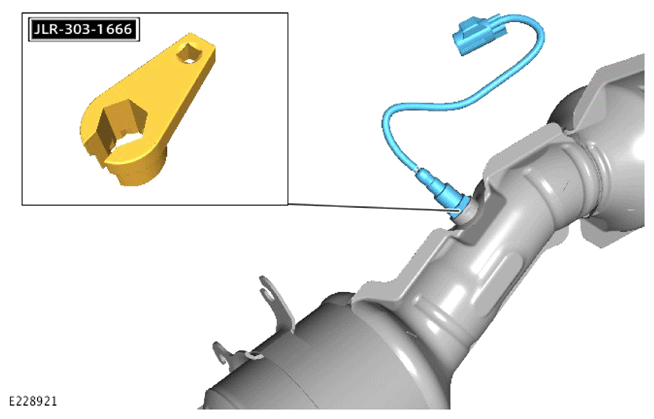

Using the special tool, remove the Heated Oxygen Sensor (HO2S).
Special Tool(s): JLR-303-1666
