Fuel Rail Pressure Sensor (G2289191): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Extreme cleanliness must be exercised when handling these components. Make sure that all tools and the surrounding area is clean before commencing work.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Before working on the fuel system make sure to study the fuel system health and safety.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

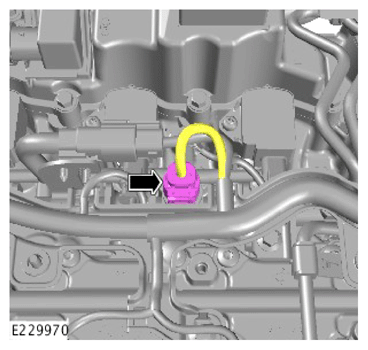

Disconnect the electrical connector from the fuel rail pressure sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

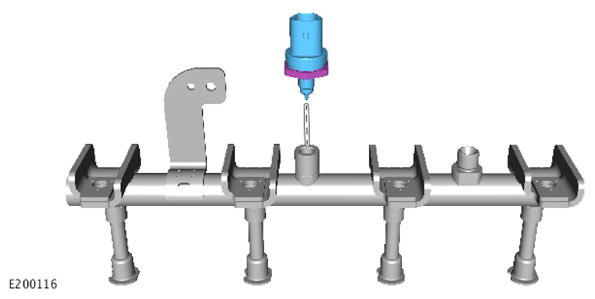

Remove the fuel rail pressure sensor.
