Front Knock Sensor (G2031025): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the generator.
Refer to the appropriate service information.

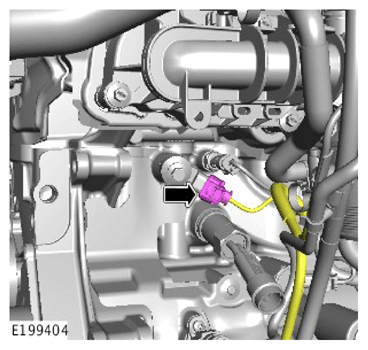

Disconnect the electrical connector.

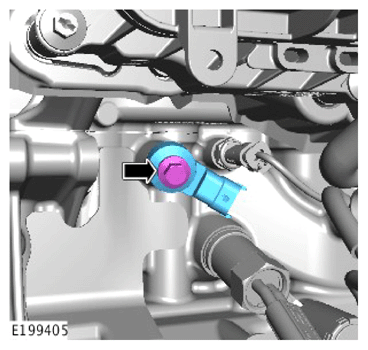

Remove the knock sensor.
