Engine Control Module (G2340555): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Disconnect the battery ground cable.
Refer to: COWL PANEL
Refer to: COWL PANEL
The following step(s) applies to:

Left-hand drive vehicles

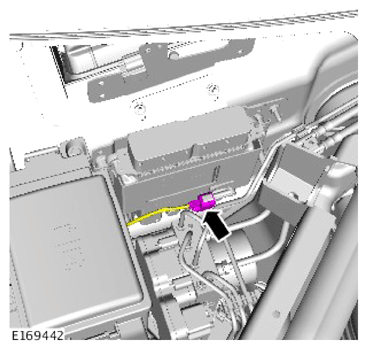

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

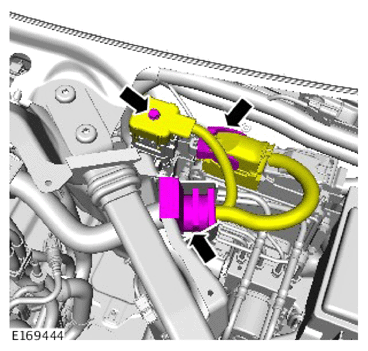

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: If equipped.

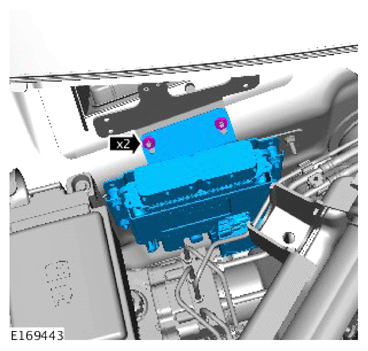

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

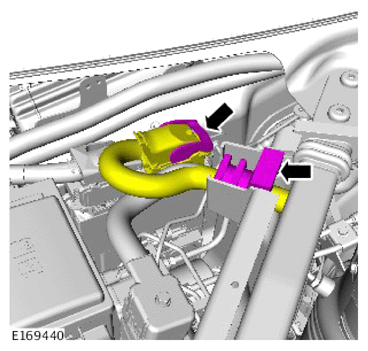

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
NOTE: Do not disassemble further if the component is removed for access only.

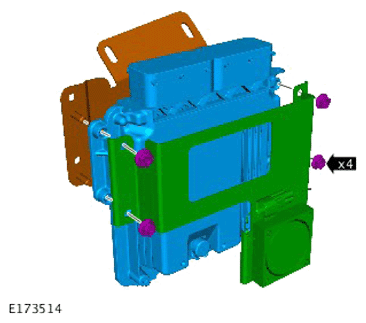

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm

The following step(s) applies to:

Right-hand drive vehicles

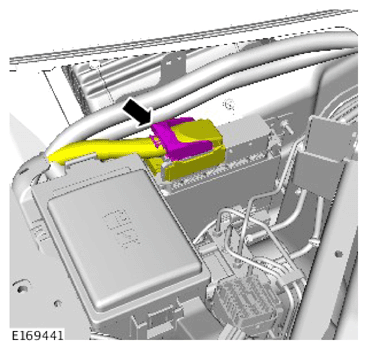

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 3.6 Nm

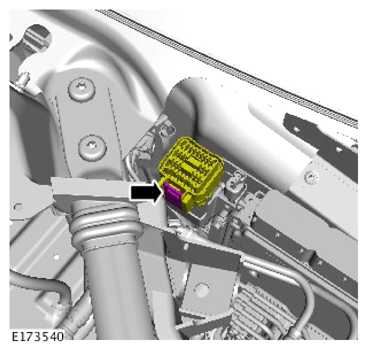

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

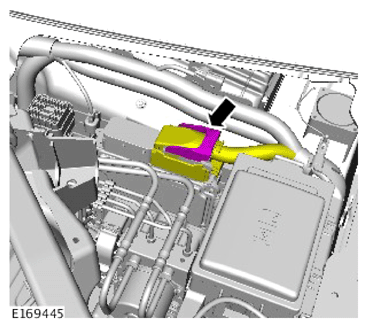

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

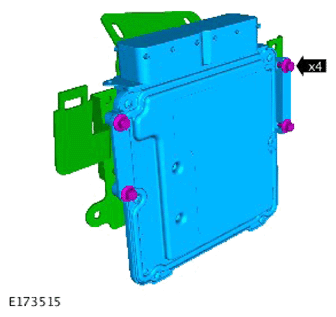

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
NOTE: Do not disassemble further if the component is removed for access only.

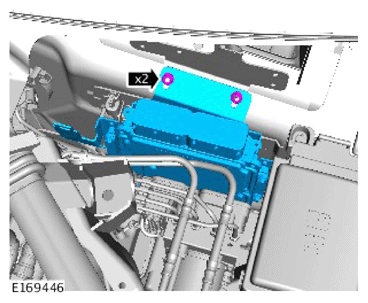

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
