Cylinder Head Temperature Sensor (G2031747): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the intake air resonator.

    Refer to: INTAKE AIR RESONATOR

  2. CAUTION: This is a single use component and must be renewed if removed.

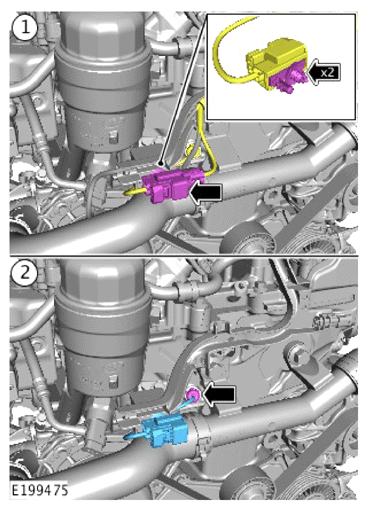

    G14513384Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Slide the retaining clip from the back of the electrical connector.
    • Remove the cylinder head temperature sensor.
