Crankshaft Position Sensor (G1998396): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
-
NOTE: This step contains illustrations for left hand drive vehicles, right hand side components are similar.

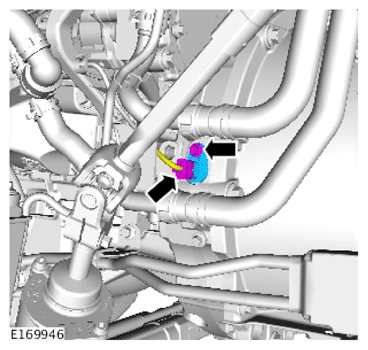

- Disconnect the electrical connector.
- Remove the bolt.
- Remove the crankshaft position sensor.
