Restraints Control Module
WARNING: This page is about a different variant/trim than selected.

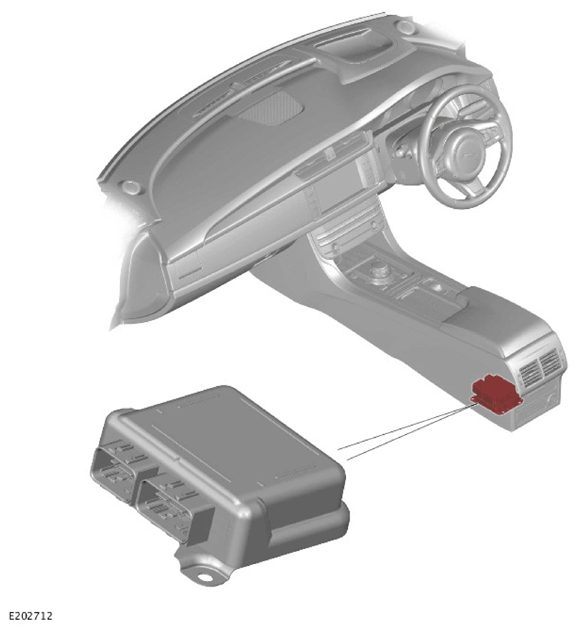

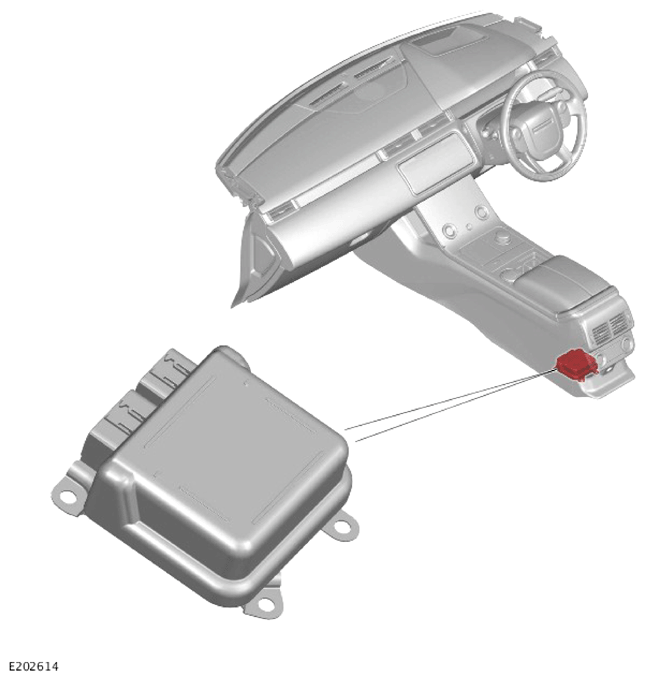

The Restraints Control Module (RCM) is installed on the top of the transmission tunnel, in line with the B-pillars.
The main functions of the RCM include:
- Crash detection and recording.
- Airbag and pretensioner firing.
- Self-test and system monitoring, with status indication via the airbag warning indicator and non-volatile storage of fault information.
- Supply of yaw rate and lateral acceleration data for the Anti-lock Brake System (ABS) control module.
