Exhaust Back-Pressure Sensor - If Equipped
WARNING: This page is about a different variant/trim than selected.

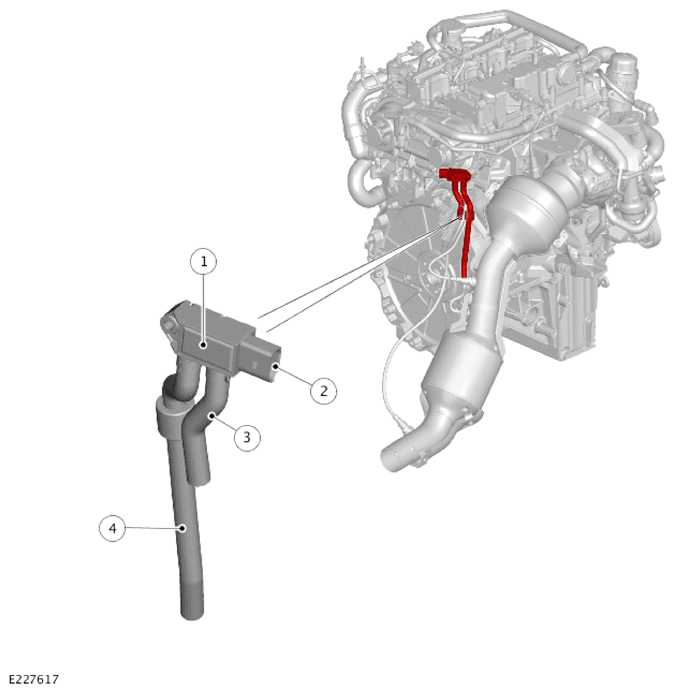

| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust back-pressure sensor |
| 2 | Electrical connector |
| 3 | Vent hose |
| 4 | Connection hose to exhaust system |
The exhaust back-pressure sensor is mounted on a bracket at the rear of the engine. The exhaust back-pressure sensor has a pipe and hose to connect to the exhaust system between the catalytic converter and the Gasoline Particulate Filter (GPF).
For additional information, Refer to: GASOLINE PARTICULATE FILTER
