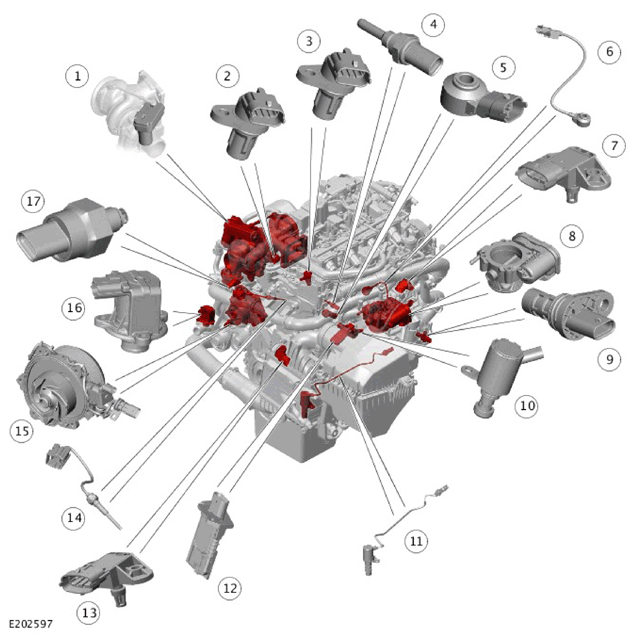

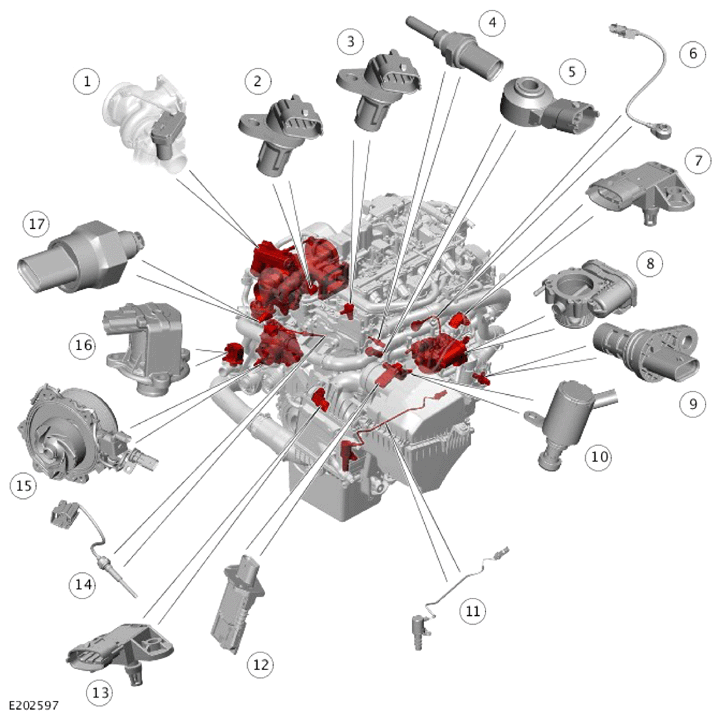

Component Location - 1 Of 4
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Turbocharger wastegate actuator |
| 2 | Camshaft Position (CMP) sensor - Exhaust |
| 3 | CMP sensor - Intake |
| 4 | Cylinder block temperature sensor |
| 5 | Front knock sensor |
| 6 | Rear knock sensor |
| 7 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 8 | Electric throttle |
| 9 | Crankshaft Position (CKP) sensor |
| 10 | Piston cooling oil jets solenoid |
| 11 | Oil pump control solenoid |
| 12 | Mass Air Flow and Temperature (MAFT) sensor |
| 13 | Charge air pressure and temperature sensor |
| 14 | Cylinder head temperature sensor |
| 15 | Variable coolant pump |
| 16 | Compressor Recirculation Valve (CRV) |
| 17 | Oil pressure and temperature sensor |
