Valve Cover Vent Oil Separator (G2142088): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

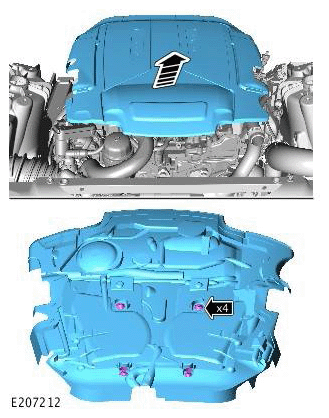

  1. G12009079Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine cover.

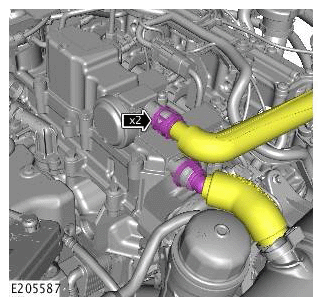

  2. G12009080Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 valve cover breather hoses.

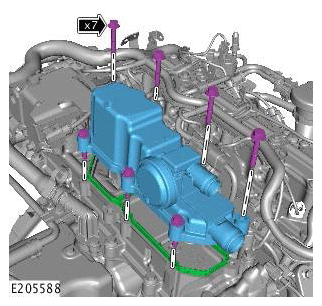

  3. G12009081Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the valve cover vent oil separator.
    • Remove and discard the seal.
