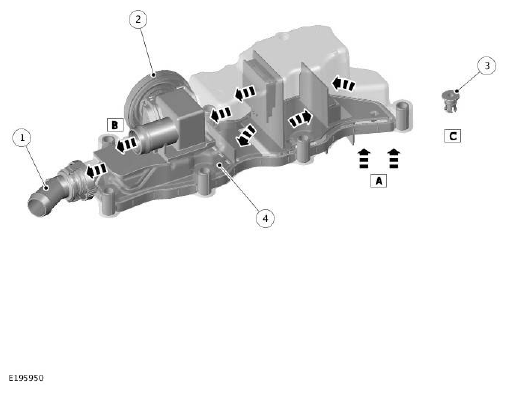

Engine Vent Module Oil Separator
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| A |
Gas and oil vapor |
| B |
Gas vapor |
| C |
Oil |
| 1 |
Breather pipe from turbocharger |
| 2 |
Positive crankcase ventilation valve |
| 3 |
Oil drain valve |
| 4 |
Positive crankcase ventilation baffle |
