Spark Plugs (G1998302): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the fuel rail electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 4 ignition coil electrical connectors.
- Remove the 4 retaining bolts.
- Remove the 4 ignition coils.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

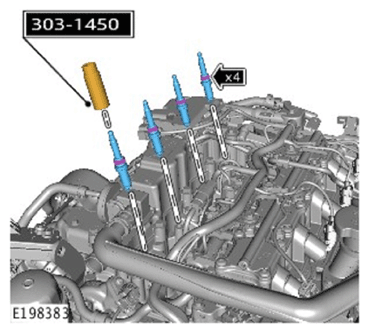

Using special tool 303-1450 remove the 4 spark plugs.

Special Tool(s): 303-1450
