Ignition Coil-On-Plug (G1998301): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

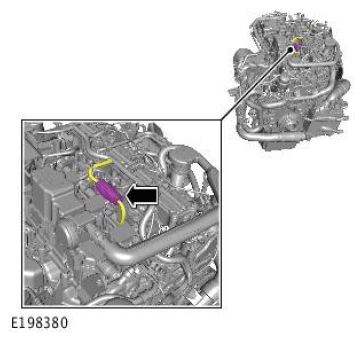

Disconnect the fuel rail electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

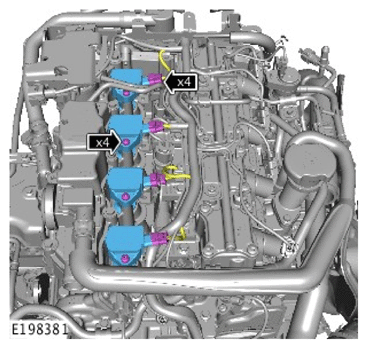

- Disconnect the 4 electrical connectors.
- Remove the 4 retaining bolts.
- Remove the 4 ignition coils.
