Starter Motor (G2110302): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Remove the catalytic converter.
Refer to: CATALYTIC CONVERTER AND GASOLINE PARTICULATE FILTER ASSEMBLY - VEHICLES WITH: ROW SPECIFICATION (G2524050) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

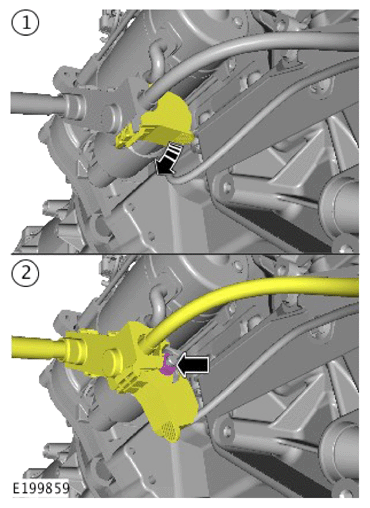

- Release the cover.
- Disconnect the battery cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

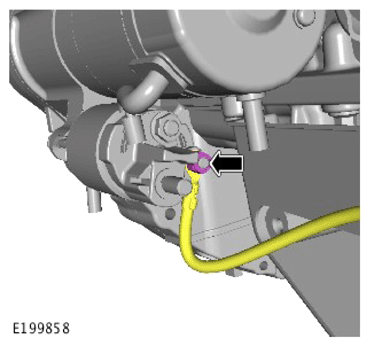

Disconnect the wiring harness nut.
CAUTION: Do not allow the starter motor to hang from the breathers.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

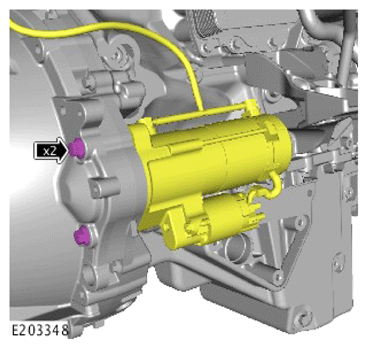

Remove the bolts and release the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

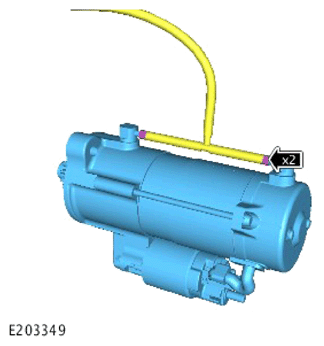

Release the breather and remove the starter motor.
