Ignition Switch
WARNING: This page is about a different variant/trim than selected.
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.

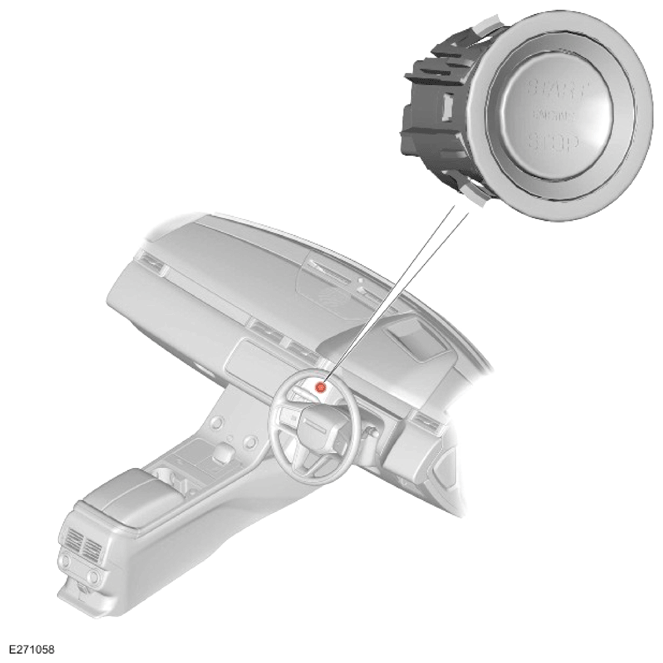

The ignition switch is located in the middle of the instrument panel and it is hardwired to the BCM /GWM . When the ignition switch is operated, the 2 signal wires from the BCM /GWM return to the BCM /GWM through 1 wire, then connects to the ground.
