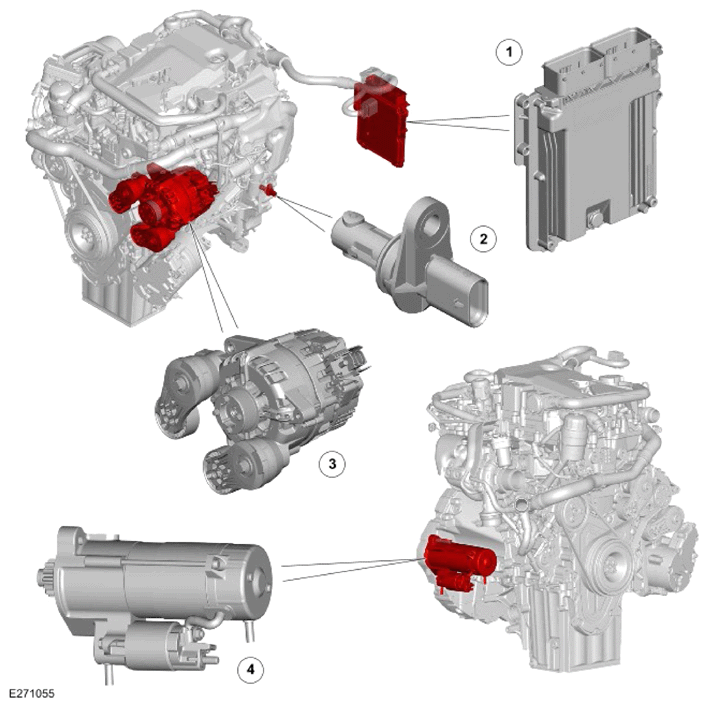

Component Location - 2 Of 3 - Vehicles With Belt Integrated Starter Generator
WARNING: This page is about a different variant/trim than selected.
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
PCM |
| 2 |
CKP |
| 3 |
Belt Integrated Starter Generator (BISG) |
| 4 |
Starter motor |
