Turbocharger (G2006271): Description: HEATSHIELDS
WARNING: This page is about a different variant/trim than selected.

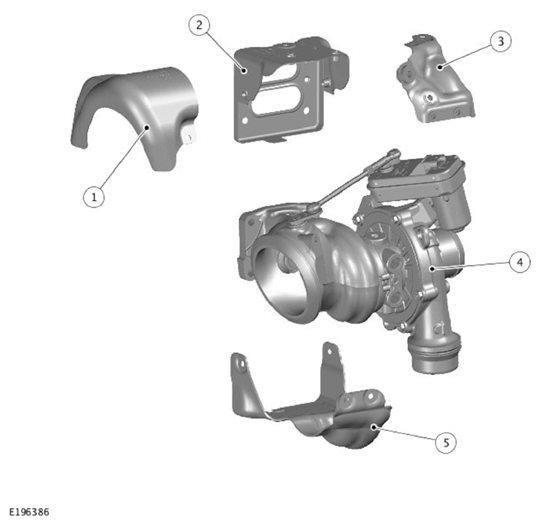

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear upper heatshield |
| 2 | Multi-layer steel gasket |
| 3 | Front upper heatshield |
| 4 | Fixed vane turbocharger |
| 5 | Lower heatshield |
The heatshields are installed over the turbocharger to protect other components, and to prevent accidental contact with the hot exhaust components. The heatshields are fixed by bolts to the turbocharger.
