Component Location

WARNING: This page is about a different variant/trim than selected.

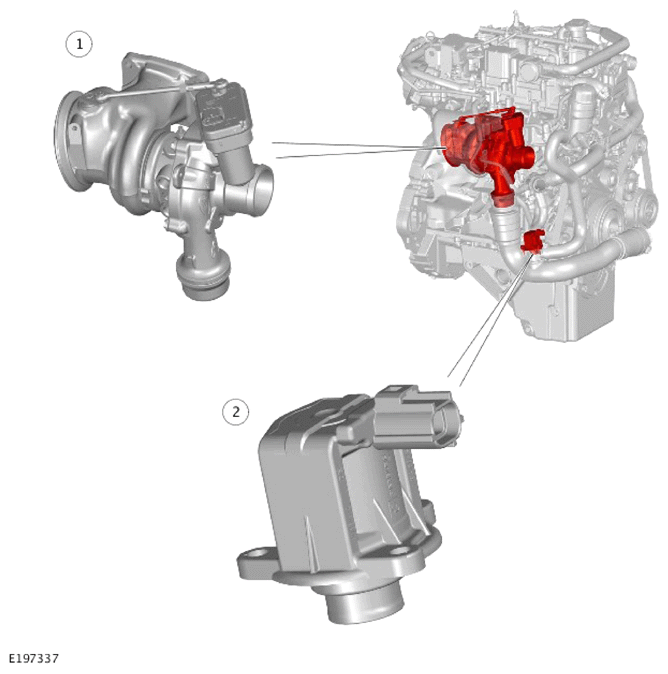

G14287686Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Fixed vane turbocharger
2 External compressor bypass valve
