Engine Ignition - V8 S/C 5.0L Petrol (G2318594): Specifications
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
SPECIFICATION |
| Firing order |
1:5:4:2:6:3:7:8 |
| Spark plug type (NGK) |
SILZAR7E8S |

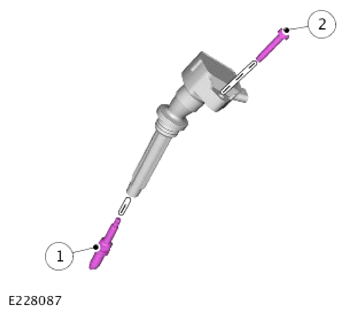

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Spark plug |
22.5 |
17 |
- |
| 2 |
Ignition coil on-plug bolt |
8 |
- |
71 |
