Ignition Coil-On-Plug (G2244125): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Bank 2 shown, Bank 1 similar.
    • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
    • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

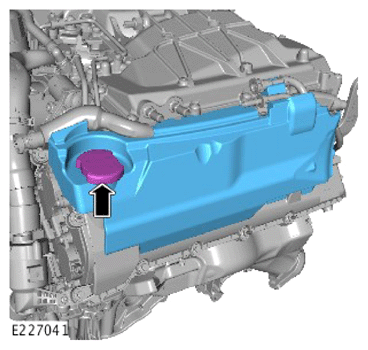

  2. G14288544Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove oil filler cap.
    • Remove the Noise, Vibration and Harshness (NVH) material.
    • Install the oil filler cap.

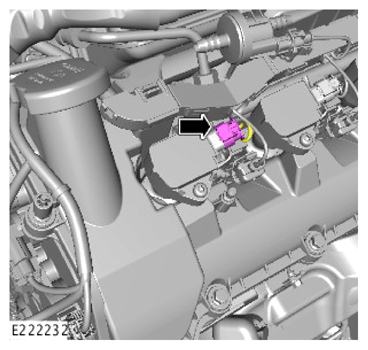

  3. G14288545Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

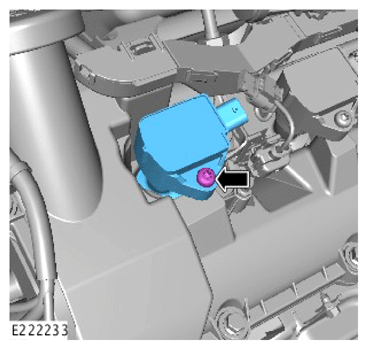

  4. G14288546Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the ignition coil-on-plug.
  5. Repeat steps  3 and  4 for the remaining ignition coil-on-plugs for Bank 2
