Auto Stop/Start Soft Key
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

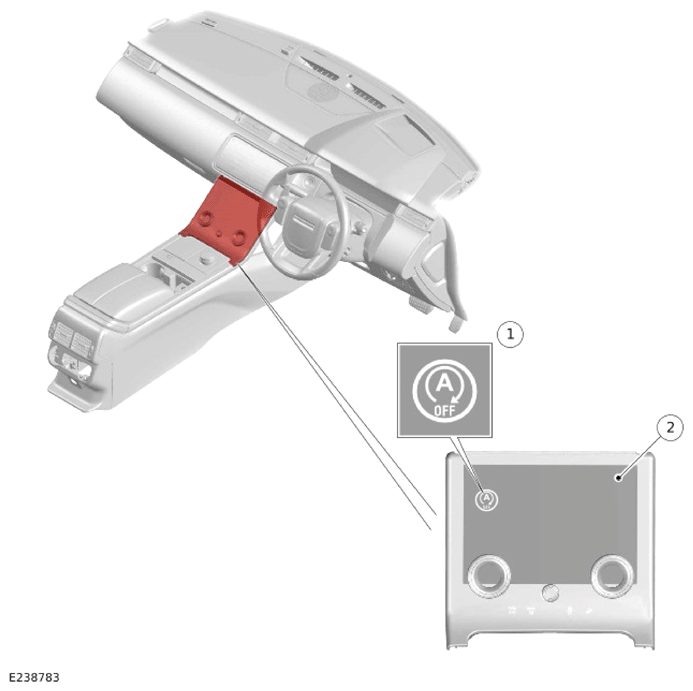

| ITEM | DESCRIPTION |
|---|---|
| 1 | Auto stop/start soft key |
| 2 | Interactive Control Display Module (ICDM) |
The auto stop/start soft key can be accessed from the 'Vehicle' menu on the Interactive Control Display Module (ICDM). The ICDM is located in the instrument panel. The driver can enable or disable the auto stop/start system using the auto stop/start soft key. The request is transmitted from the ICDM to the Body Control Module/Gateway Module (BCM/GWM). The request is transmitted through the High Speed (HS) Controller Area Network (CAN) comfort systems bus.
