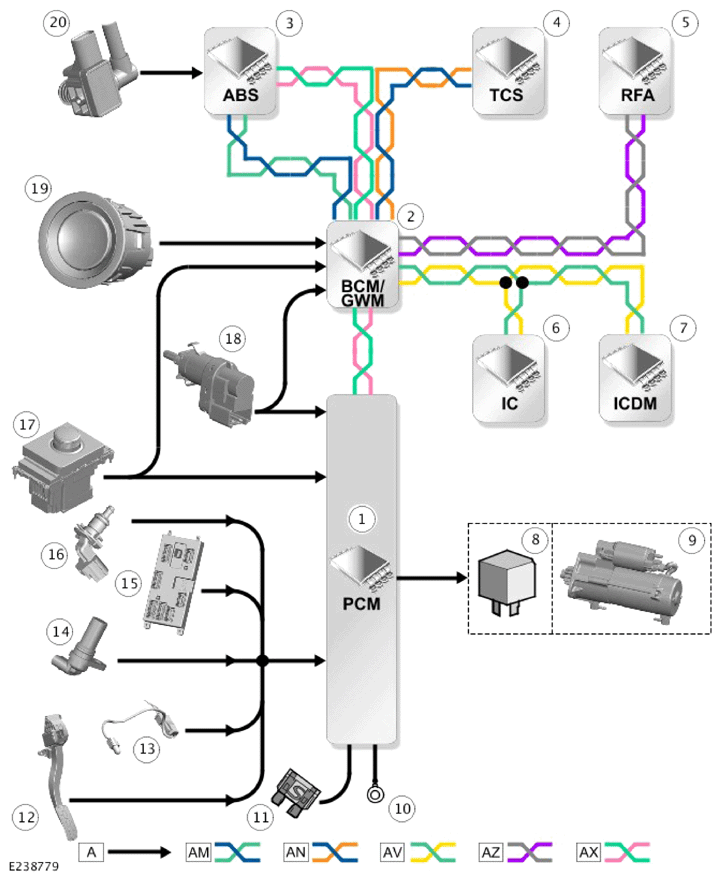

Control Diagram
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Transmission Control Switch (TCS) |
| 5 | Remote Function Actuator (RFA) |
| 6 | Instrument Cluster (IC) |
| 7 | Interactive Control Display Module (ICDM) |
| 8 | Starter relay |
| 9 | Starter motor |
| 10 | Ground |
| 11 | Power supply |
| 12 | Accelerator Pedal Position (APP) sensor |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | Crankshaft Position (CKP) sensor |
| 15 | Crank signal - Body Control Module/Gateway Module (BCM/GWM) assembly |
| 16 | Engine Coolant Temperature (ECT) sensor |
| 17 | PARK/NEUTRAL signal - TCS |
| 18 | Brake pedal switch |
| 19 | Ignition switch |
| 20 | Brake vacuum sensor |
