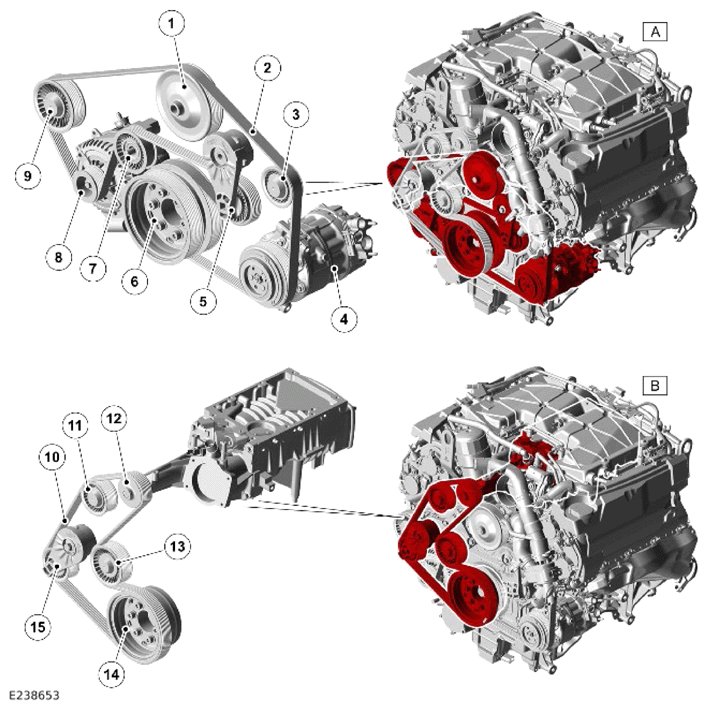

Component Location - Supercharged Vehicles
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| A | Accessory drive |
| B | Supercharger drive |
| 1 | Coolant pump pulley |
| 2 | Accessory drive belt |
| 3 | Idler pulley |
| 4 | Air Conditioning (A/C) compressor pulley |
| 5 | Accessory drive belt tensioner |
| 6 | Crankshaft pulley/mass damper |
| 7 | Idler pulley |
| 8 | Generator pulley |
| 9 | Idler pulley |
| 10 | Supercharger belt |
| 11 | Idler pulley |
| 12 | Supercharger pulley |
| 13 | Idler pulley |
| 14 | Crankshaft pulley/mass damper |
| 15 | Supercharger belt tensioner |
