Throttle Body (G2269166): Removal
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
- Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
- Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR .

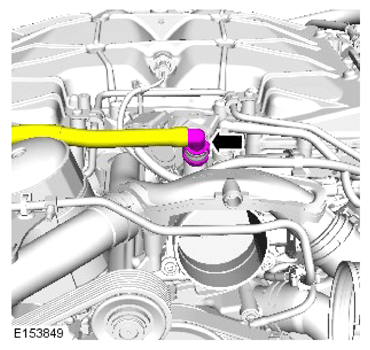

Disconnect the breather pipe from the supercharger.

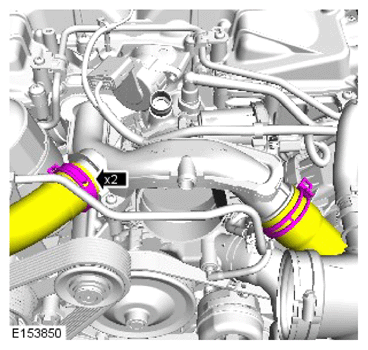

- Release the 2 clamps.
- Disconnect the 2 coolant hoses.
- Release the clip and position the wiring harness to one side.
- Remove the 2 bolts.
- Remove the coolant pipe.
- Remove and discard the O-ring seal.
Disconnect the 2 electrical connectors.
Remove the 4 bolts.
- Release the 2 clamps.
- Release the 2 coolant hoses.
- Remove the throttle body.
