Fuel Injectors (G2244109): Installation

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
  1. G11607553Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new O-ring seals.

  2. G11587672Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a special tool, install new Teflon™ seals on the lower tips of the fuel injectors.

    Special Tool(s): 310-198

  3. G11587673Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, re-shape the Teflon™ seals.

    Special Tool(s): 310-199

  4. G11587674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new fuel injector spring clamp.

  5. CAUTION:
    • Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
    • When installing the fuel injectors, make sure that the Teflon™ seal is clean and free of foreign material and lubricant.
    G11688968Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 8 new fuel injectors.

  6. CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

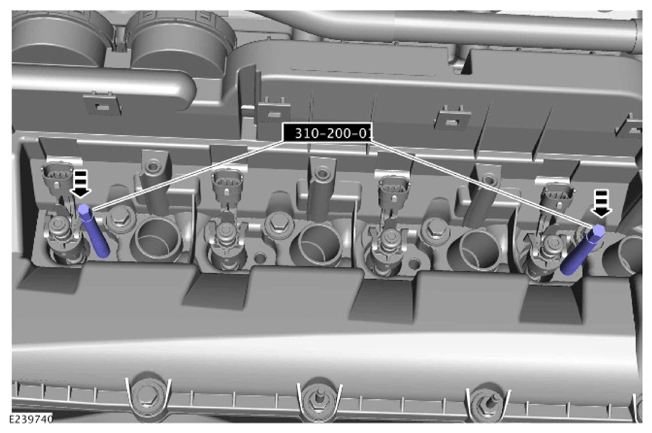

    G14287881Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool as shown.

    Special Tool(s): 310-200-02

  7. CAUTION:
    • If new fuel injectors are installed, a new fuel injector clamp must be installed.
    • Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
    NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

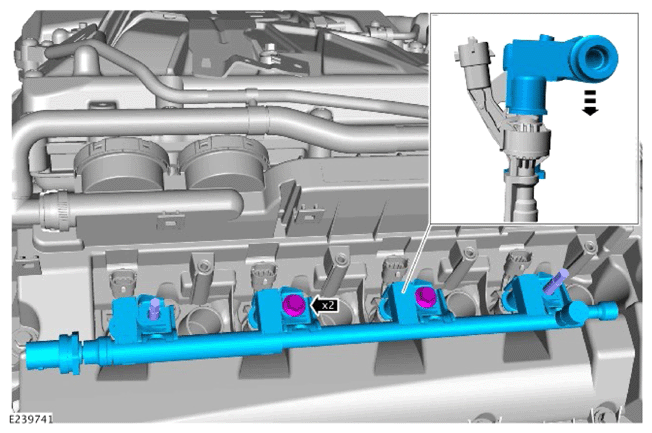

    G14287882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the fuel rail.
    • Install and alternately tighten the 2 bolts 1 half turn at a time until the required torque is achieved.

      Torque  : 20 Nm

    • Repeat process to the other side.

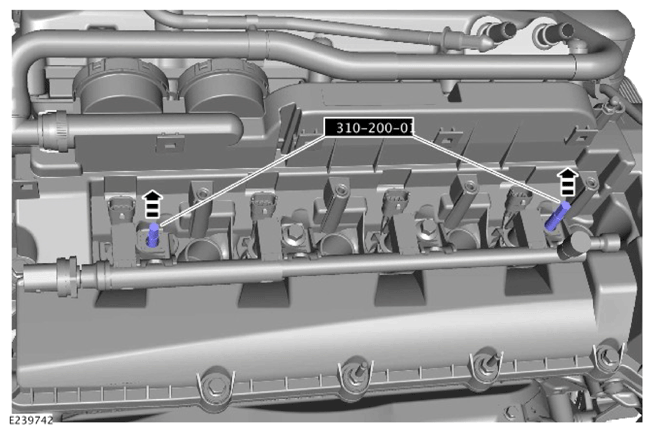

  8. G14287883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): 310-200-02

  9. G14287884Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

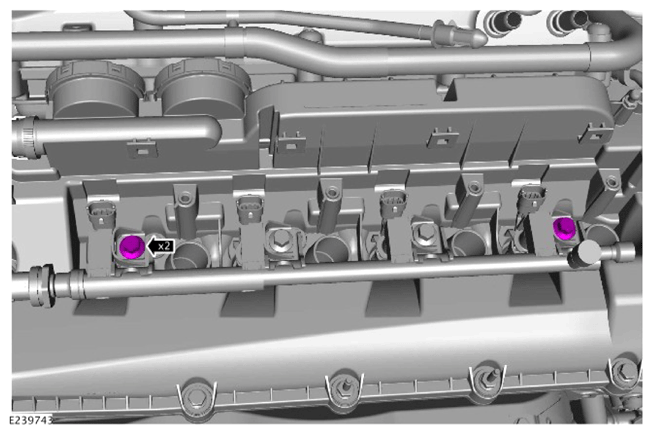

    Install and alternately tighten the 2 bolts 1 half turn at a time until the required torque is achieved.

    Torque  : 20 Nm

  10. NOTE: Tighten the bolts in the indicated sequence.
    G14287885Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

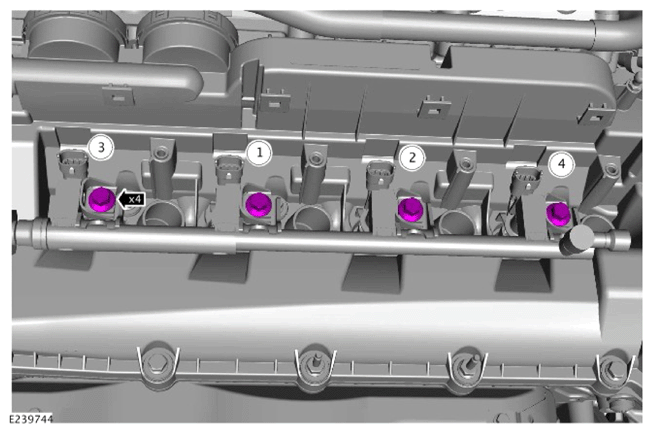

    Fully tighten the 8 fuel rail bolts.

    Torque  : 30 Nm

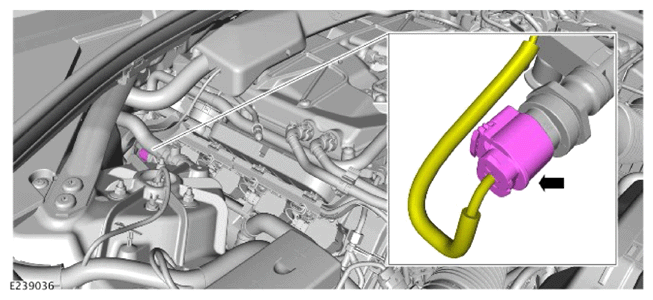

  11. G14287868Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the electrical connector.

  12. G11688956Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 8 ignition coils.
    • Install and tighten the 8 bolts.

      Torque  : 8 Nm

  13. G11688955Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the 8 ignition coil electrical connectors.
    • Connect the 8 fuel injector electrical connectors.
  14. CAUTION: Lubricate only the union threads with clean engine oil.
    NOTE:
    • Engine shown removed for better clarity.
    • Install the bolt and unions finger tight before final tightening.
    • Remove and discard the blanking caps.
    G11607696Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the new fuel line assembly, tighten the fuel line unions finger tight.
    • Install and tighten the 2 bolts.
    • Install and tighten the nut.
  15. NOTE: Engine shown removed for clarity.
    G11607698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Tighten the fuel line assembly unions (1).

      Torque  : 21 Nm

    • Tighten the fuel line assembly M6 bolt (2).

      Torque  : 11 Nm

    • Tighten the fuel line assembly M8 bolt (3).

      Torque  : 25 Nm

    • Tighten the fuel line assembly M5 nut (4).

      Torque  : 6 Nm

  16. NOTE: Engine shown removed for clarity.
    G11606720Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the idler pulley.

    Torque  : 21 Nm

  17. Install the generator.

    Refer to: GENERATOR .

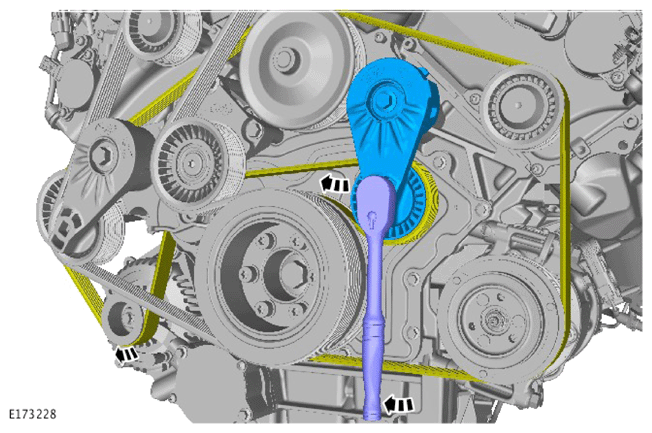

  18. G14287865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Attach the accessory drive belt.

  19. NOTE: Engine shown removed for clarity.
    G11686730Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the heatshield.
    • Install and tighten the 2 bolts.

      Torque

      Heatshield M10 bolt: 29 Nm

      Heatshield M6 bolt: 11 Nm

  20. G11607621Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the 2 electrical connectors.
    • Attach the retaining clips.
  21. Install the engine undershield.

    Refer to: ENGINE UNDERSHIELD .

  22. G11607603Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Attach the retaining clip.

  23. CAUTION: Lubricate only the union threads with clean engine oil.
    NOTE: Remove and discard the blanking caps.
    G14287860Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the new fuel line.
    • Tighten the 2 fuel line unions.

      Torque  : 21 Nm

    • Tighten the 4 bolts.

      Torque  : 8 Nm

  24. Install the air filter outlet pipe T-connector.

    Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR .

  25. G14287859Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the breather pipe.

  26. G11713385Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the Noise, Vibration and Harshness (NVH) material.

  27. G14287374Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the engine oil filler cap.
    • Install the NVH material.
    • Install the oil filler cap.
    • Connect the pipe connectors.
  28. G14287856Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the pipe.

  29. G14286625Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the coolant hoses.
    • Install the clip.
    • Repeat step for other side.
  30. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  31. Fill the coolant system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
