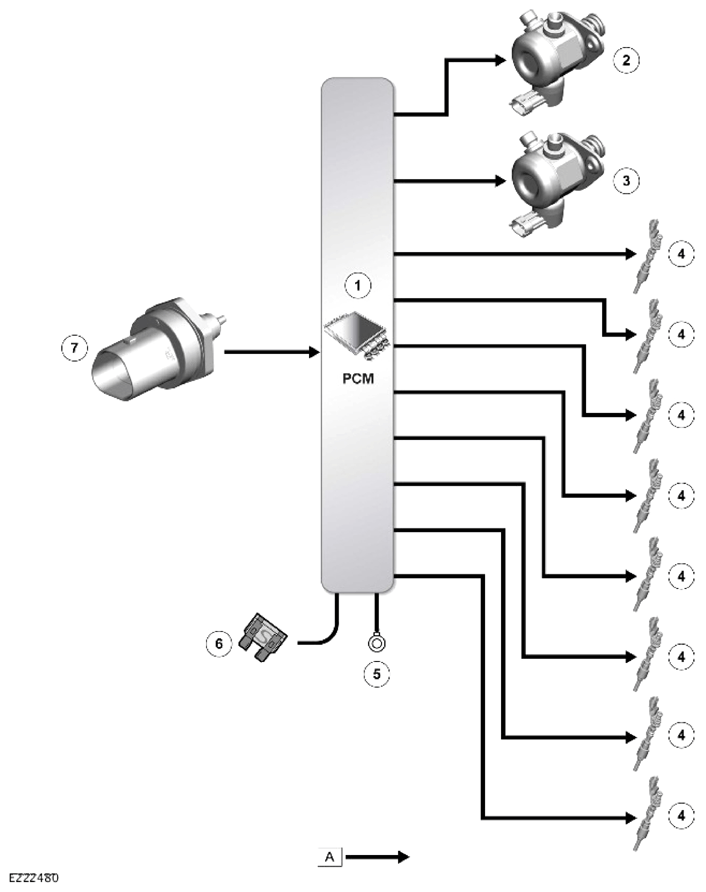

Control Diagram
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED.
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Front High Pressure (HP) fuel pump |
| 3 |
Rear HP fuel pump |
| 4 |
Fuel injector (quantity 8) |
| 5 |
Ground |
| 6 |
Power supply |
| 7 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
