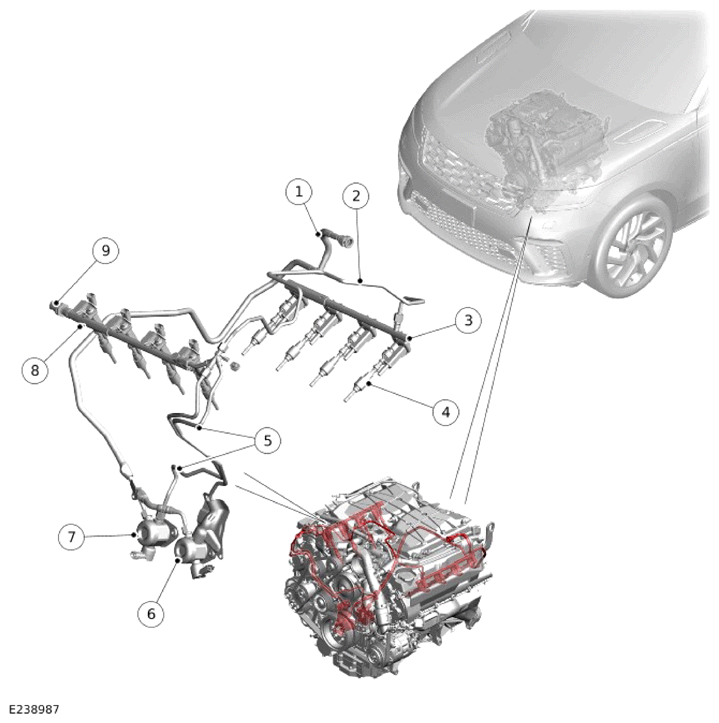

Component Location
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Low Pressure (LP) fuel line |
| 2 |
Cross-over pipe |
| 3 |
Fuel rail - Bank 2 |
| 4 |
Fuel injector (quantity 8) |
| 5 |
High Pressure (HP) fuel lines |
| 6 |
Front HP fuel pump |
| 7 |
Rear HP fuel pump |
| 8 |
Fuel rail - Bank 1 |
| 9 |
Fuel Rail Pressure and Temperature (FRPT) Sensor |
