Charge Air Radiator
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

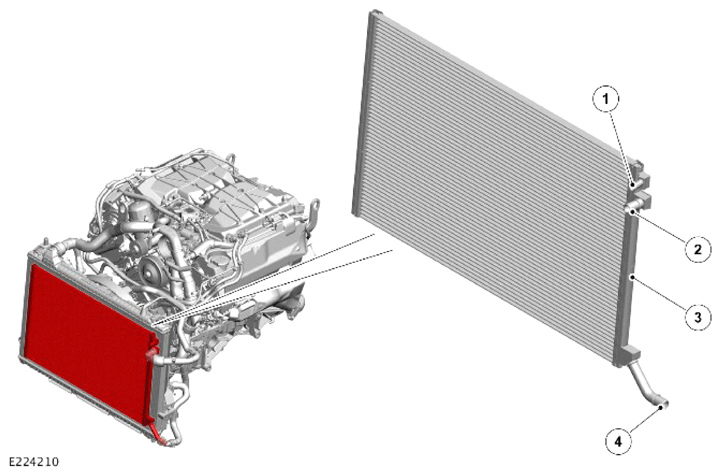

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bleed screw |
| 2 | Coolant outlet connection |
| 3 | Charge air radiator |
| 4 | Coolant inlet connection |
The charge air radiator is a cross flow type with an aluminum core and aluminum end tanks. The charge air radiator is located between the Air Conditioning (A/C) condenser and the radiator. The charge air radiator is secured to the radiator mounting frame with 6 mounting lugs and a bracket on the lower right side.
The left end tank comprises connections to the charge air coolant pump outlet pipe, the charge air cooler pipe and the bleed screw.
