Charge Air Coolant Pump
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

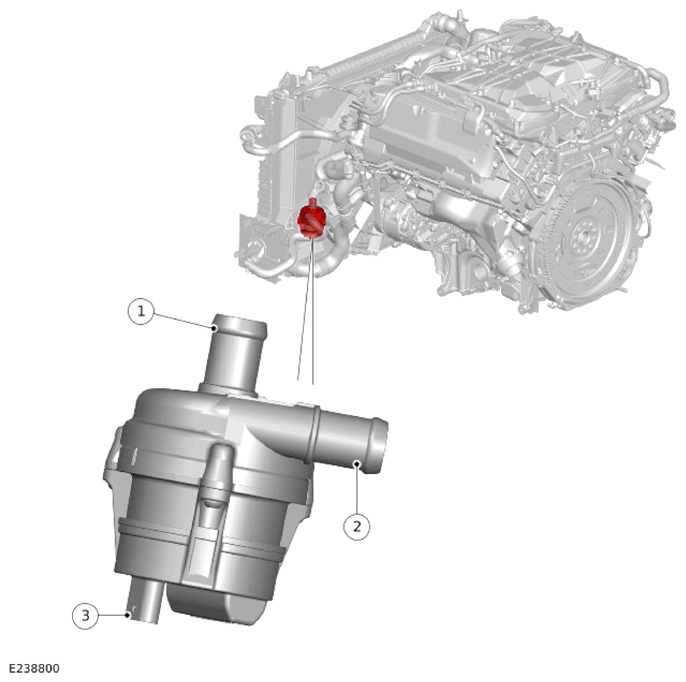

| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant inlet connection |
| 2 | Coolant outlet connection |
| 3 | Electrical connector |
The charge air coolant pump is an electric pump attached to the left side of the charge air radiator. Coolant hoses connect the inlet of the charge air coolant pump to the charge air radiator and the outlet to the charge air coolers. An electrical connector provides the interface between the charge air coolant pump and the vehicle wiring harness.
The charge air coolant pump receives a fused power supply from a dedicated relay in the Engine Junction Box 1 (EJB 1).
