Engine Cooling - V8 S/C 5.0L Petrol (G2318507): Description: Thermostat
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

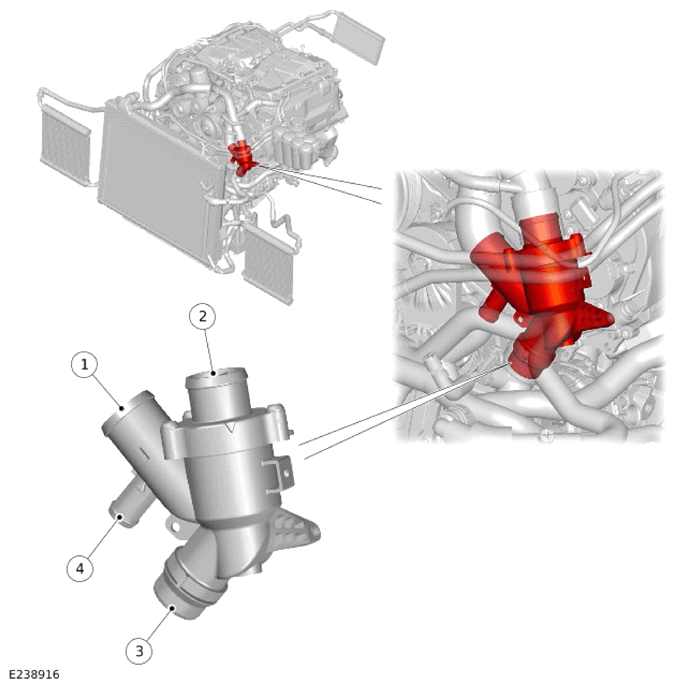

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Coolant pump |
| 2 | Hose connection - Engine coolant outlet pipe |
| 3 | Hose connection - Radiator lower hose |
| 4 | Hose connection - Coolant expansion tank |
The thermostat is a multi-stage device located in the coolant pump inlet to provide fast response and control of the engine outlet temperature.
