Engine Cooling - V8 S/C 5.0L Petrol (G2318507): Description: Radiator

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

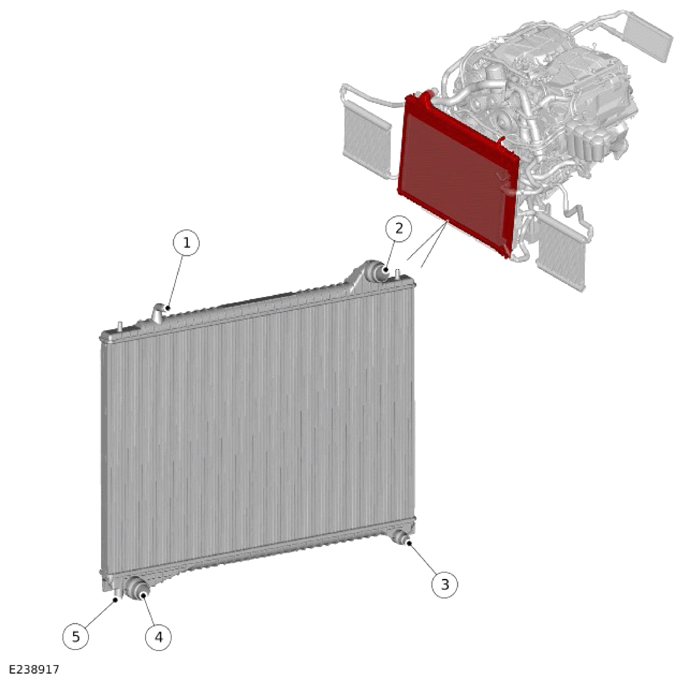

ITEM	DESCRIPTION
1	Hose connection - Coolant expansion tank
2	Hose connection - Radiator upper hose
3	Hose connection - Left auxiliary radiator
4	Hose connection - Radiator lower hose
5	Drain screw

The radiator is a vertical flow type with an aluminum core and plastic end tanks. The radiator is located in the vehicle by bushes attached to the end tanks. The lower bushes are installed in the front subframe. The upper bushes are installed in the front end carrier.

A low temperature zone is located at the left side of the radiator and provides cooled engine coolant for the Automatic Transmission Fluid (ATF) cooler.

Upper and lower hose connections are incorporated into the upper and lower end tanks respectively. The lower end tank also incorporates a drain screw, and a connection for the supply hose of the ATF cooler. The upper end tank incorporates a connection for a vent hose to the coolant expansion tank. The end tanks also incorporate mounting points for viscous and electric cooling fan shrouds, and the Air Conditioning (A/C) condenser.
