Engine Coolant Temperature Sensors
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

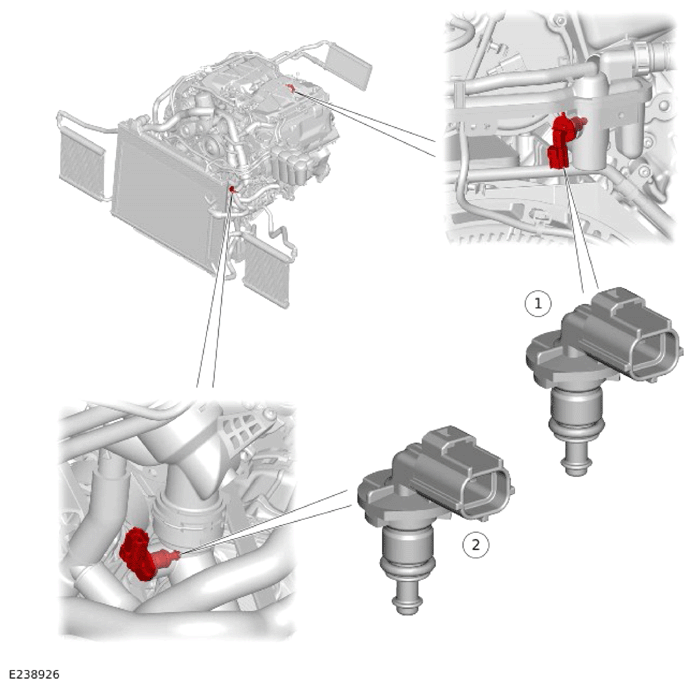

| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine Coolant Temperature (ECT) sensor - Heater manifold |
| 2 | ECT sensor - Thermostat |
An Engine Cooling Temperature (ECT) sensor is installed in the heater manifold and below the thermostat housing.
The ECT sensor is a Negative Temperature Coefficient (NTC) resistor that allows the Powertrain Control Module (PCM) to monitor the engine coolant temperature.
For additional information, refer to: ELECTRONIC ENGINE CONTROLS
