Engine Coolant Outlet Pipe

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

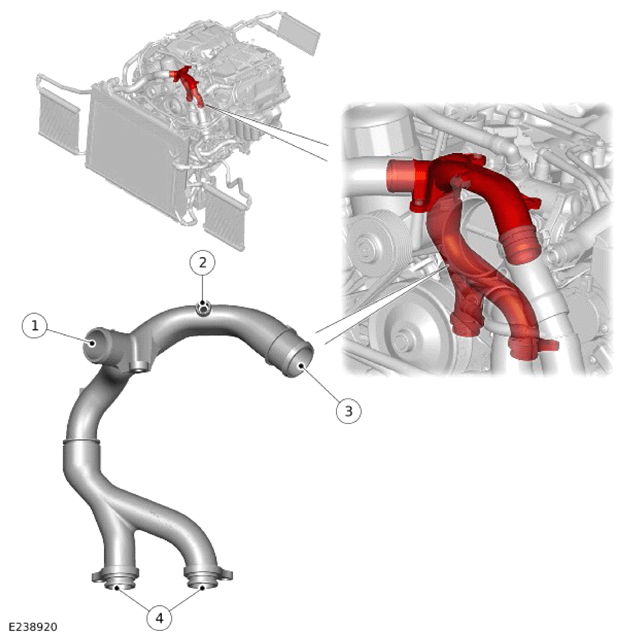

G14109266Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Radiator upper hose connection
2 Blanking plug
3 Thermostat hose connection
4 Cylinder block connection
