Electric Throttle
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

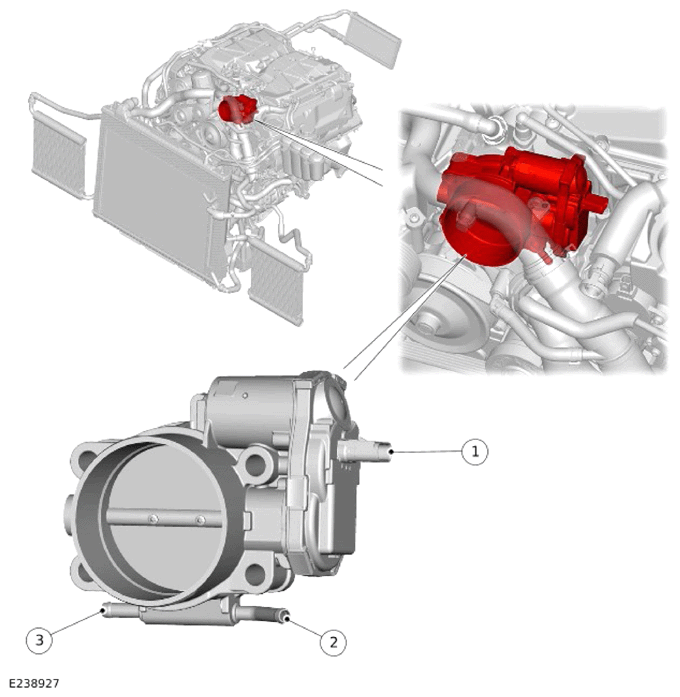

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric connector |
| 2 | Engine coolant inlet connection |
| 3 | Engine coolant outlet connection |
The electric throttle regulates the air flow into the supercharger.
To prevent icing, engine coolant is circulated across the throttle body through the engine coolant inlet and outlet connections.
For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING
