Coolant Pump
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

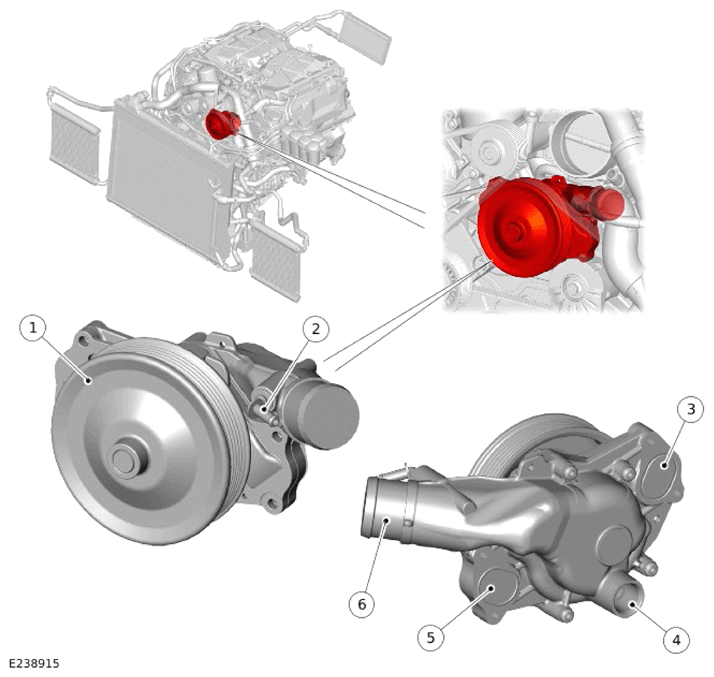

| ITEM | DESCRIPTION |
|---|---|
| 1 | Pulley |
| 2 | Bleed pipe connection (containing check valve) |
| 3 | Flange connection - Engine coolant outlet to cylinder head - Bank 1 |
| 4 | Hose connection - Oil cooler |
| 5 | Flange connection - Engine coolant outlet to cylinder head - Bank 2 |
| 6 | Hose connection - Engine coolant inlet |
The body of the engine coolant pump contains an impeller attached to a shaft supported in a bearing assembly. The impeller is driven by a pulley, pressed on to the front of the shaft, which is driven by the accessory drive belt.
For additional information, refer to: ACCESSORY DRIVE
There are 2 engine coolant outlet flanges attached to the coolant pump to the front of the cylinder heads. A bleed connector is installed in the front of the coolant pump, adjacent to the engine coolant inlet connection from the thermostat. A check valve is incorporated into the bleed connection.
