Charge Air Radiator
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

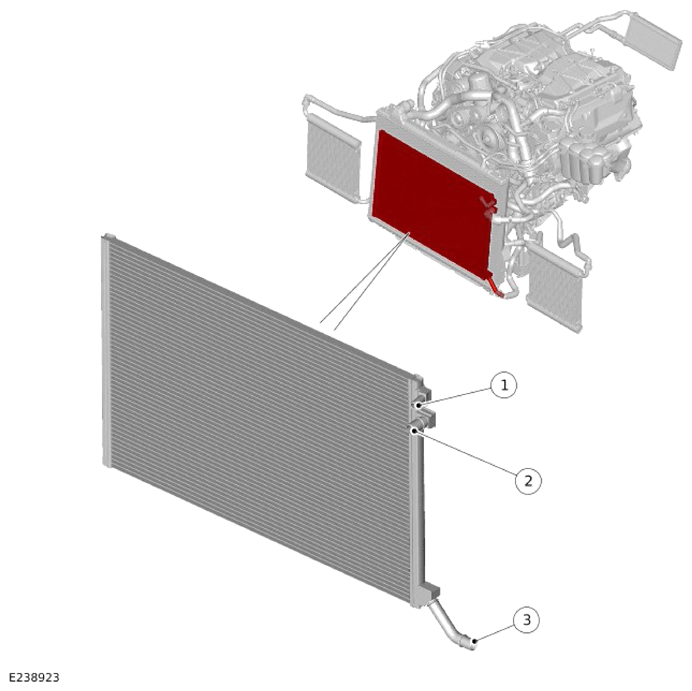

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bleed screw |
| 2 | Engine coolant inlet connection |
| 4 | Engine coolant outlet connection |
The charge air radiator is a cross flow type with an aluminum core and aluminum end tanks. The charge air radiator is located between the Air Conditioning (A/C) condenser and the radiator. The charge air radiator is secured to the radiator mounting frame with 6 mounting lugs and a bracket on the lower right side.
The left end tank comprises connections to the charge air coolant pump outlet pipe, the charge air cooler pipe and the bleed screw.
For additional information, refer to: SUPERCHARGER COOLING
