Auxiliary Radiators
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

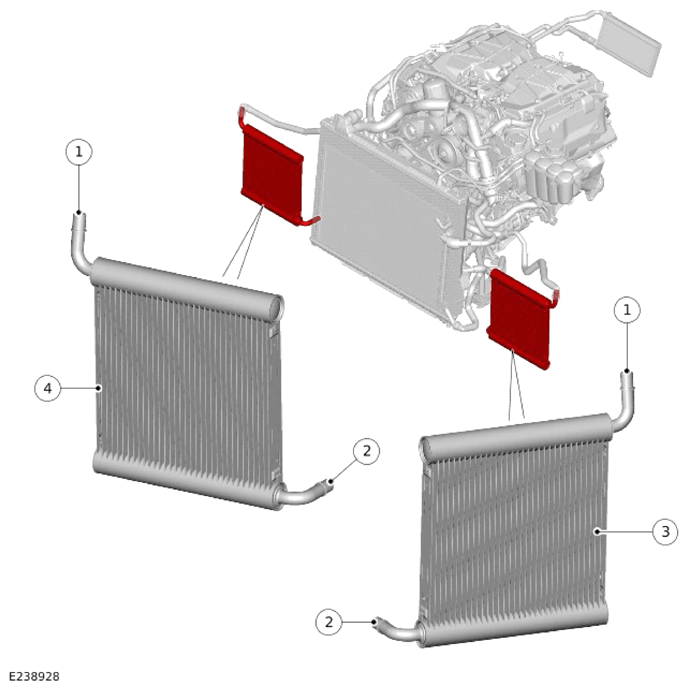

| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine coolant inlet connection |
| 2 | Hose connection to Automatic Transmission Fluid (ATF) cooler |
| 3 | Left auxiliary radiator |
| 4 | Right auxiliary radiator |
The auxiliary radiators increase engine cooling capacity. The auxiliary radiators are connected in parallel with the radiator and installed in an air duct. The air duct takes cooling air from the related side grille in the front bumper.
The left end of the left auxiliary radiator is partitioned and directs the cooled engine coolant to the Automatic Transmission Fluid (ATF) cooler.
