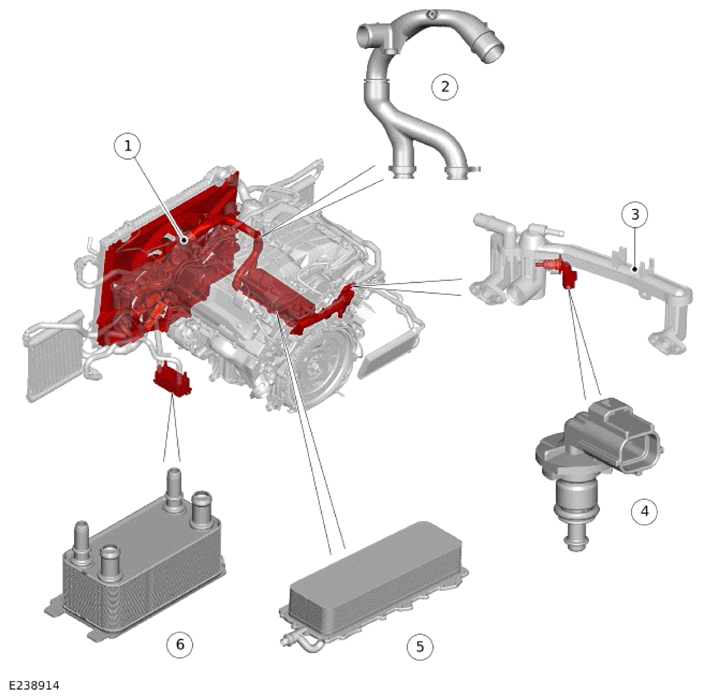

Component Location - 2 Of 2 - Rear View
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Electric cooling fan |
| 2 |
Engine coolant putlet pipe |
| 3 |
Heater manifold |
| 4 |
Engine Coolant Temperature (ECT) sensor - Heater manifold |
| 5 |
Oil cooler |
| 6 |
Automatic Transmission Fluid (ATF) cooler |
