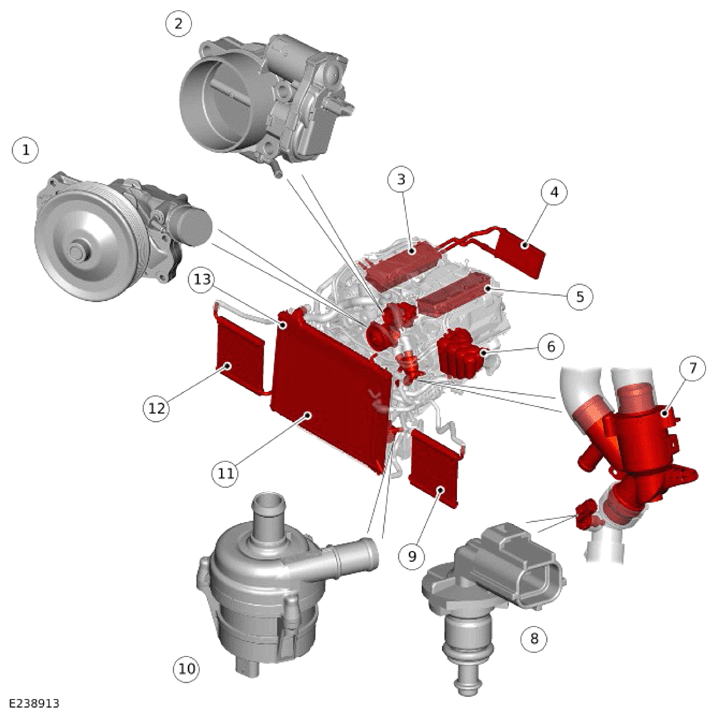

Component Location - 1 Of 2 - Front View
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant pump |
| 2 | Electric throttle |
| 3 | Right charge air cooler |
| 4 | Heater core |
| 5 | Left charge air cooler |
| 6 | Coolant expansion tank |
| 7 | Thermostat |
| 8 | Engine Coolant Temperature (ECT) sensor - Thermostat |
| 9 | Left auxiliary radiator |
| 10 | Charge air coolant pump |
| 11 | Charge air radiator |
| 12 | Right auxiliary radiator |
| 13 | Radiator |
